Description

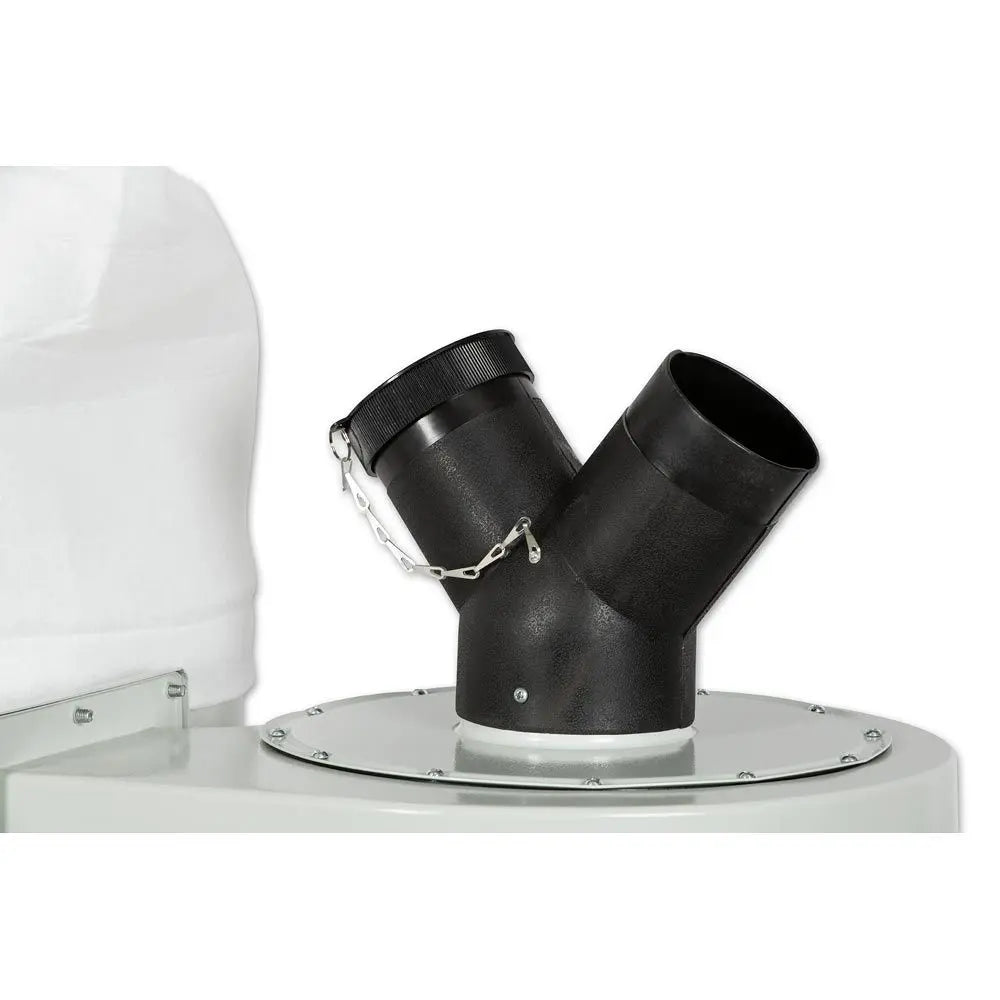

This is the largest extractor in our Workshop range. The 1.5kW motor gives an airflow of 1,165m³/hr using a 100mm hose. The AW153E has a single 125mm inlet and comes with a twin 100mm adaptor for connection to two machines. With its large capacity collection bag and twin 100mm hose inlets, it can easily handle most workshop machines.
The top cloth bag acts as the filter while the lower plastic bag collects the coarse dust and chippings. Plastic bags allow a number of bags to be filled and stored ready for bulk disposal. Bag hooks make changing bags easy, and castors on the base allow for easy mobility around the workshop. The AW153E is a solid, no-nonsense extractor.
For extraction from machines producing fine dust, such as sanders, filtration performance can be upgraded with the addition of the cartridge filter. This has a large surface area and does not reduce the airflow.
Airflow as measured in the Axminster workshop is 1,165m³/hr at 100mm and 1,720m³/hr at 125mm.
For best results, keep the hose size to a minimum of 100mm; using a smaller diameter hose will cause the air flow to drop markedly.
Note: This machine uses waste sacks size 785 x 1,200mm.
- Strong, efficient extractor with 1.5kW motor
- Large capacity collection bag for handling most workshop machines
- Easy mobility with castors on the base
- Bag hooks for easy bag changes
- Upgrade filtration performance with an optional cartridge filter
Technical Data
| Airflow | 1,165 m³/hr @ 100 mm (33-40 m/s) / 1,730 m³/hr @ 125 mm (27-38 m/s) |
| Bag Capacity | 150 litres |
| Cable Length | 2 m |
| Filter Performance | 100% >30 micron |
| Hose Diameter | 1 x 125 mm or 2 x 100 mm |
| Nett Weight | 48.5 kg |
| Overall Dimensions (L x W x H) | 890 mm x 560 mm x 1,990 mm |
| Power | 1.5 kW |
| Rating | Home Workshop |
| Sound Power Level LwA [Uncertainty K] | 77 dB(A) [1.5 dB] |
| Voltage | 230 V |
Includes
- 1 x AW153E Workshop Extractor
