Description

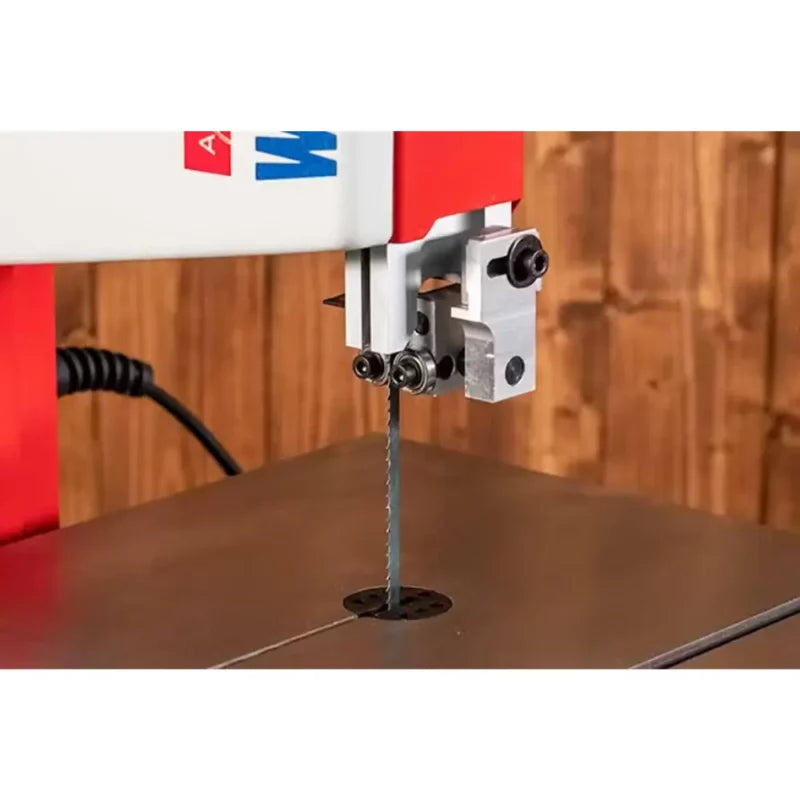

The Axminster Workshop AW1400B Bench Mounted Bandsaw is a compact and versatile machine, perfect for hobbyists, craft workshops, or as an additional bandsaw for smaller work. It features a strong welded steel chassis with a cast iron table and is designed for easy movement when not in use. The bearing blade guides and thrust bearing provide excellent blade control for increased cutting accuracy. A rack and pinion height adjustment ensures smooth blade positioning, while the direct drive motor and balanced cast alloy wheels deliver reliable performance.
- 80mm depth of cut and 200mm width of cut for precision work.
- Compact and lightweight design, ideal for hobby and craft applications.

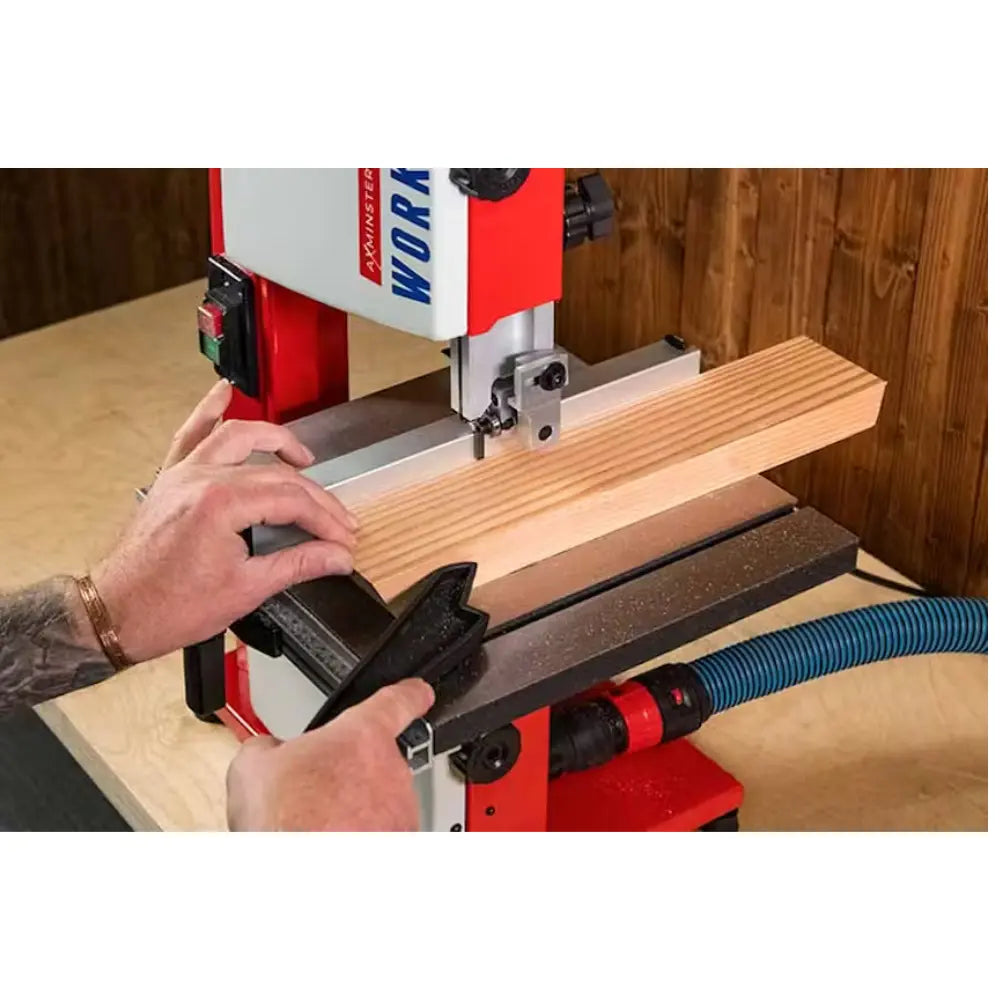

- Rigid, quick-locking rip fence for improved accuracy.

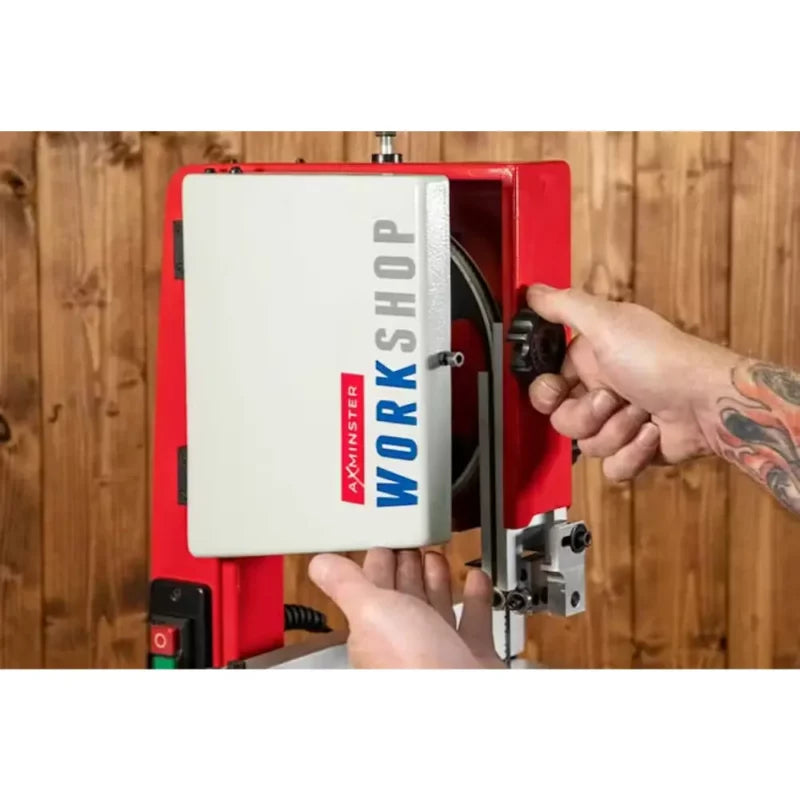

- Blade tensioning and tracking controls conveniently positioned.
- Single dust outlet port for efficient dust removal.
Technical Data
| Model | AW1400B |
| Bandsaw Blade Length | 1,400 mm (55") |
| Bandsaw Wheel Diameter | 200 mm |
| Blade Speed | 800 m/min |
| Blade Width (Min – Max) | 4.8 mm to 9.5 mm |
| Max Cutting Height | 80 mm |
| Max Width of Cut | 200 mm |
| Max Width of Cut with Fence | 102 mm |
| Dust Extraction Outlet | 40 mm |
| Min Extraction Airflow Required | 200 m³/hr |
| Power | 250 W |
| Voltage | 230 V |
| Rating | Home Workshop |
| Overall Dimensions (L × W × H) | 450 mm × 430 mm × 700 mm |
| Nett Weight | 20 kg |
| Sound Power Level (LwA) [Uncertainty K] | 97 dB(A) [3.0 dB] |
| Sound Pressure Level (LpA) [Uncertainty K] | 83.5 dB(A) [3.0 dB] |
| Table Size | 300 mm × 300 mm |

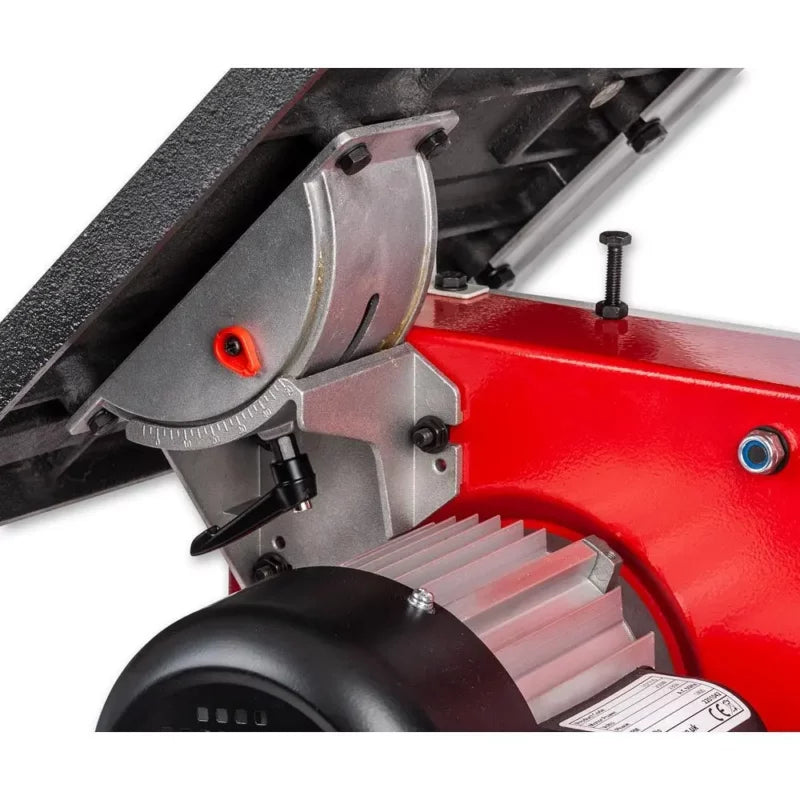

| Table Tilt | 0° – 45° |
| Table Height | 290 mm |
| T-Slot Size | 13 mm × 9 mm |
| EAN Barcode | 5052511124886 |
Includes
- (1) AW1400B Bench Mounted Bandsaw
- (1) 6mm x 6 TPI General Purpose Blade (UK Manufactured Stock)
