Description

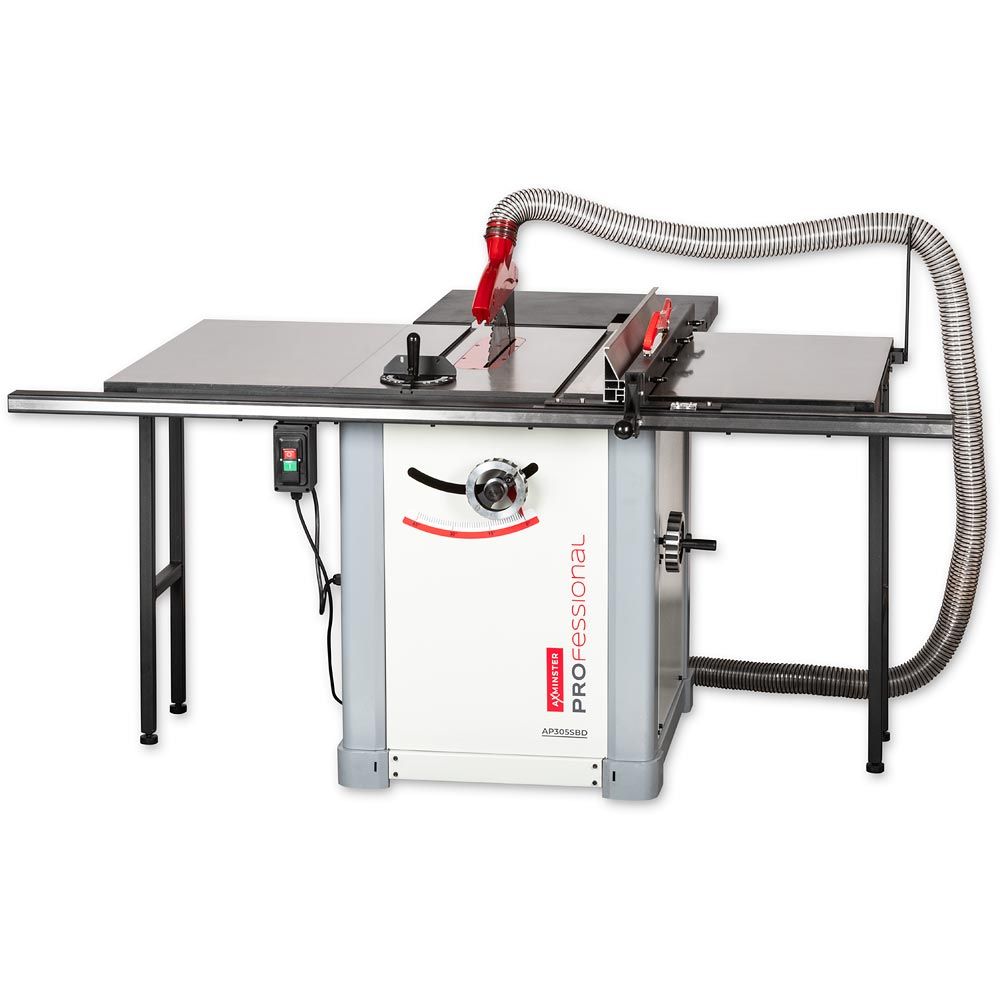

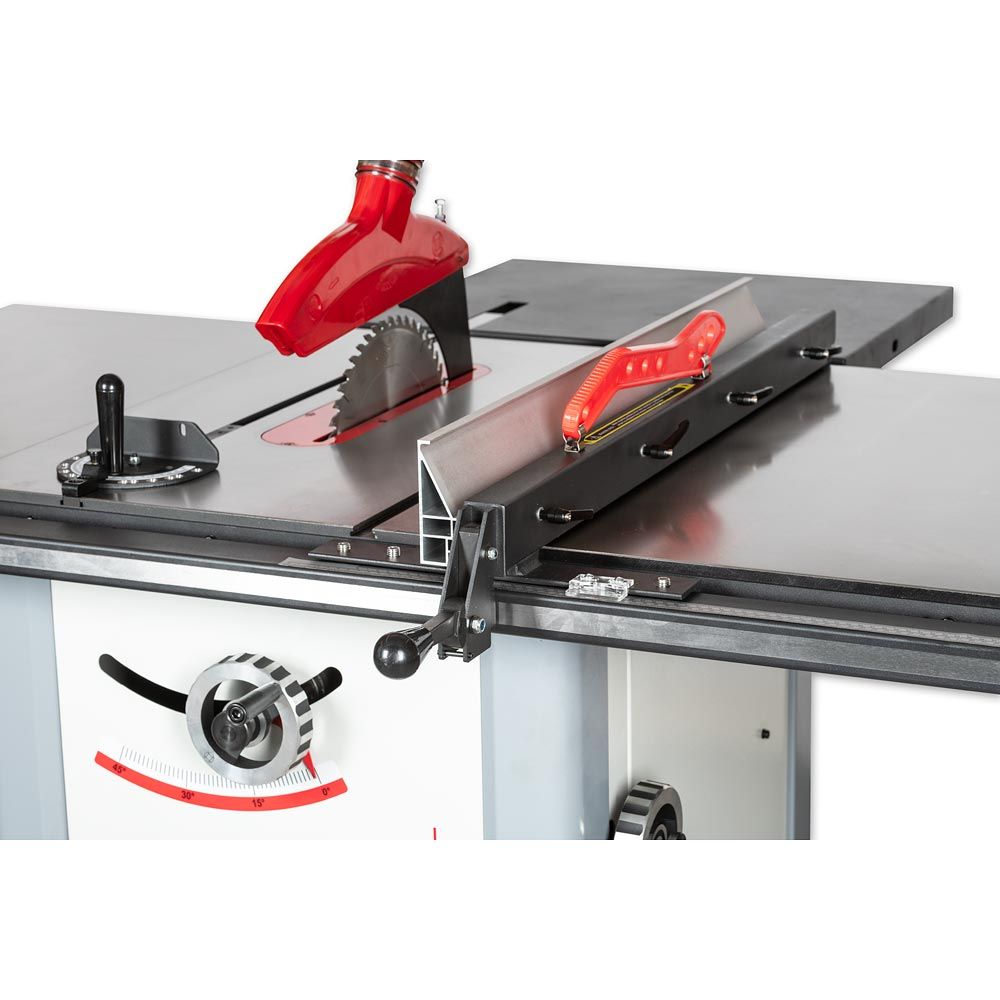

The large cast iron tables provide smooth running, reduced vibration and a long life for your table saw. These tables are an invaluable addition to any professional workshop.
- Independently mounted table & trunnion assembly

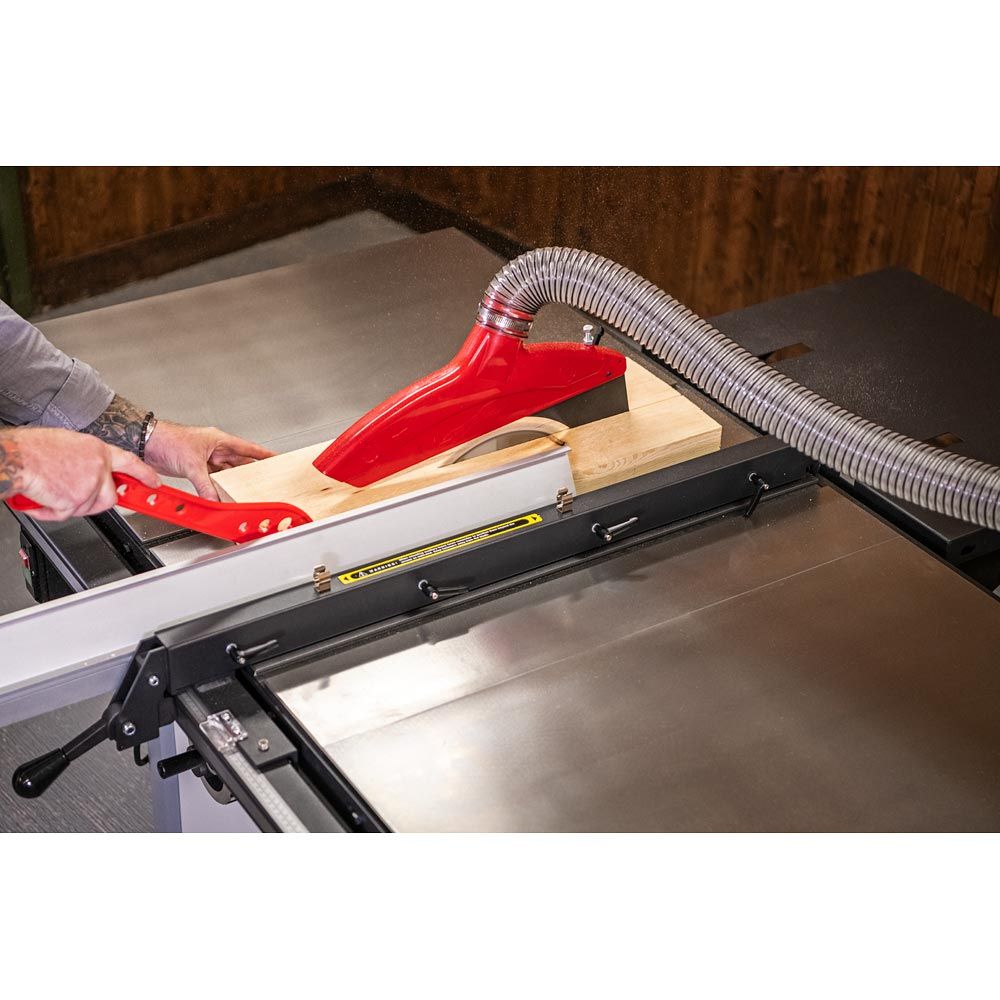

- Dual height rip fence with a solid "T" style design for accuracy

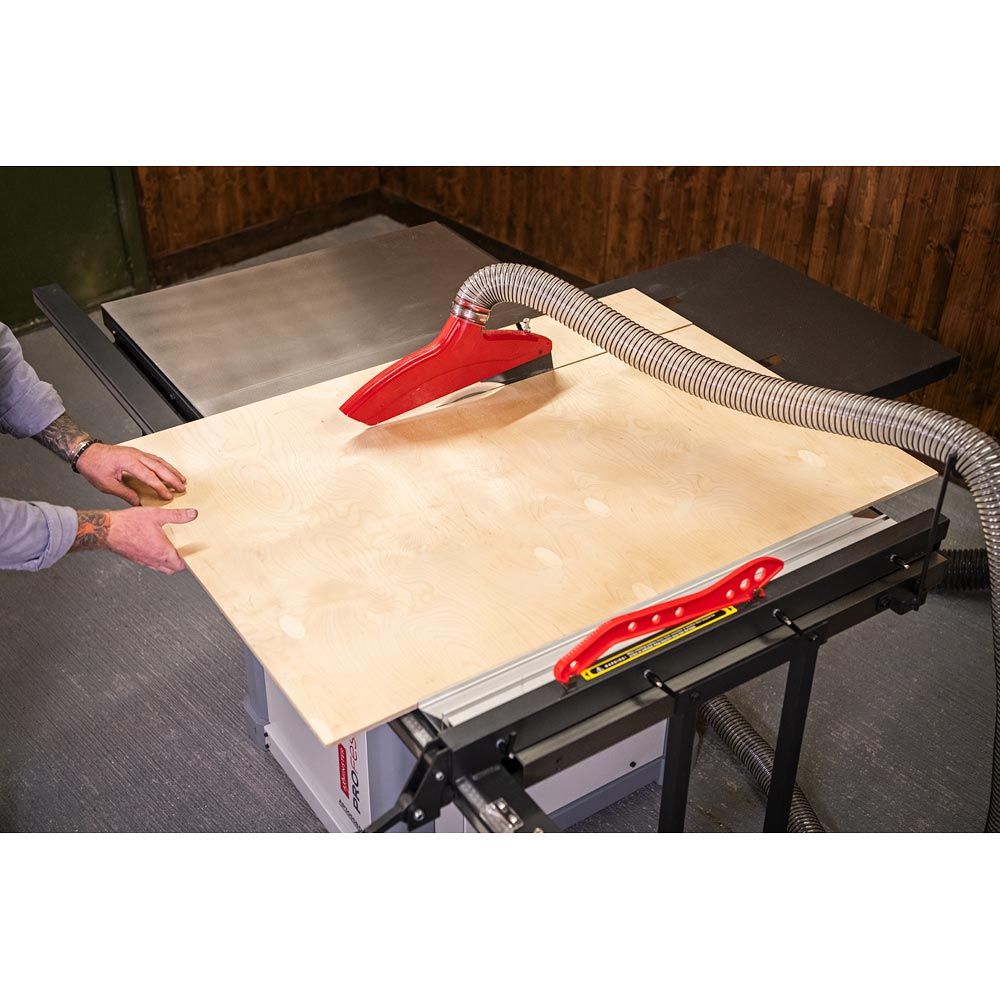

- Twin extension table configuration

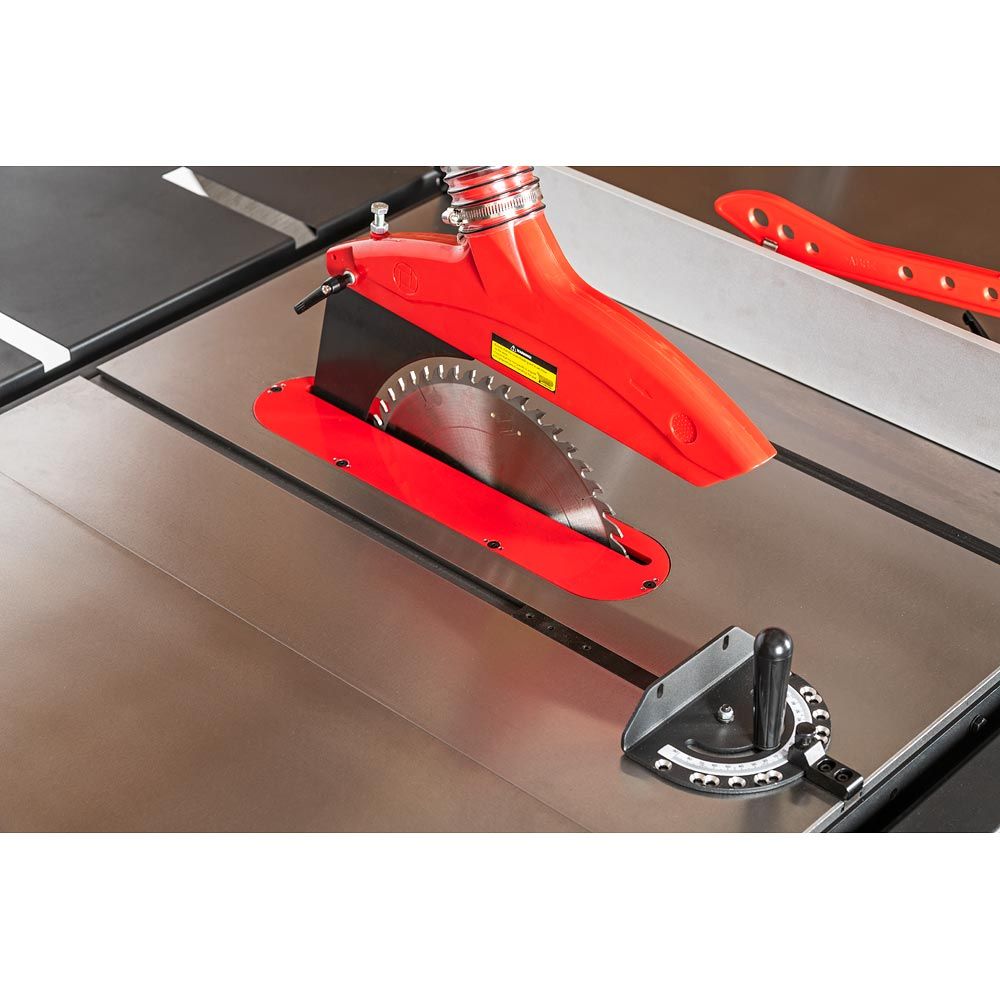

- Twin mitre fence table slots for jig use and a premium mitre gauge with useful pre-set angle stops
- Compatible with Dado Blade
Technical Data
| Blade Diameter: | 305 mm |
| Blade RPM: | 4,000 rpm |
| Bore Size: | 30 mm |
| Dust Extraction Outlet: | 100 mm & 63 mm |
| Max Depth of Cut @ 45°: | 74 mm |
| Max Depth of Cut @ 90°: | 103 mm |
| Max Width of Cut with Fence: | 1,300 mm |
| Min Extraction Airflow Required: | 1,000 m³/hr |
| Nett Weight: | 220 kg |
| Overall L x W x H: | 1,500 x 193 x 1,200 mm |
| Plug Fitted UK: | 16A Plug |
| Power: | 2.5 kW |
| Riving Knife Thickness: | 2.5 mm |
| Sound Power Level LwA [Uncertainty K]: | 98.6 dB(A) |
| Sound Pressure Level LpA [Uncertainty K]: | 82.1 dB(A) |
| T Slot Size: | 19 mm |
| Table Height: | 855 mm |
| Table Size: | 620 x 840 mm |
| Table Size With Extensions: | 1,592 x 1,400 mm |
| Voltage: | 230 V |
Includes
- 1x cast iron table saw
- 1x twin extension table
- 1x quality mitre fence
- 1x Hi/Lo aluminium auxiliary fence

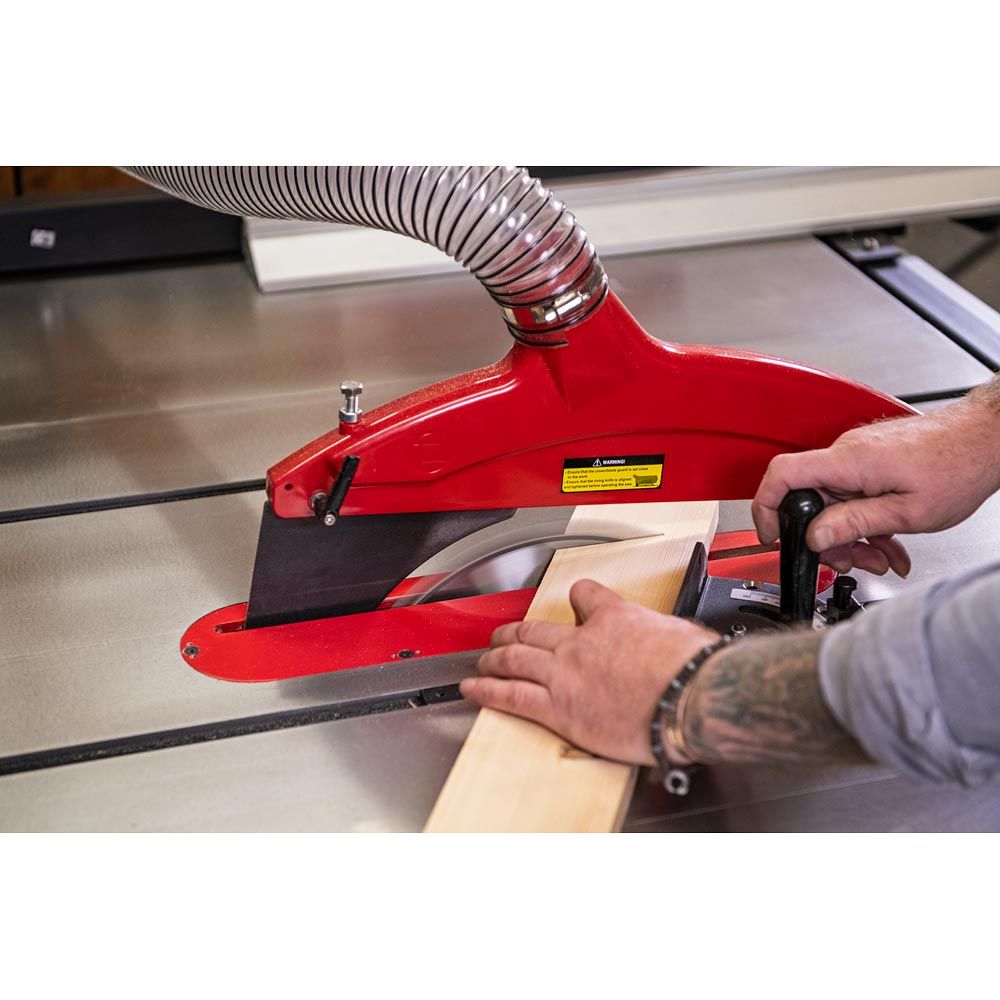

- 1x premium mitre gauge with useful pre-set angle stops
- 1x 2.5kw induction motor

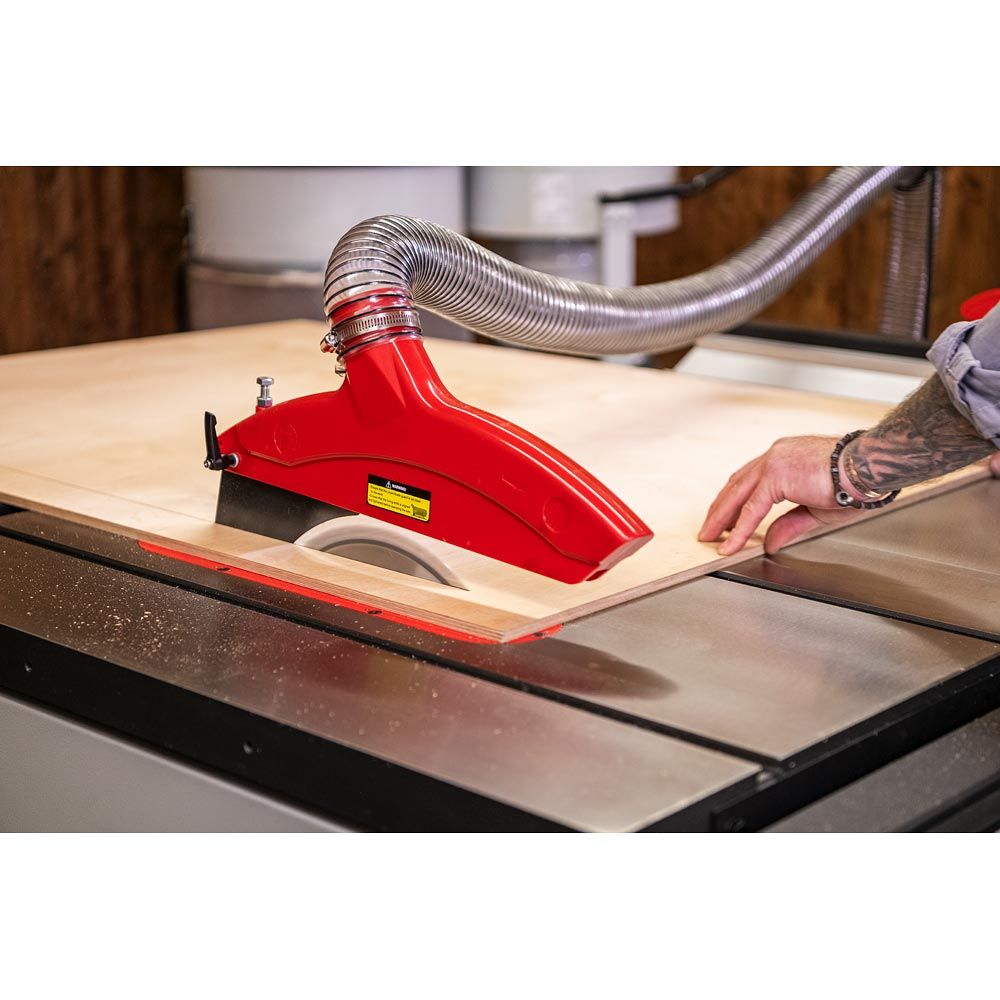

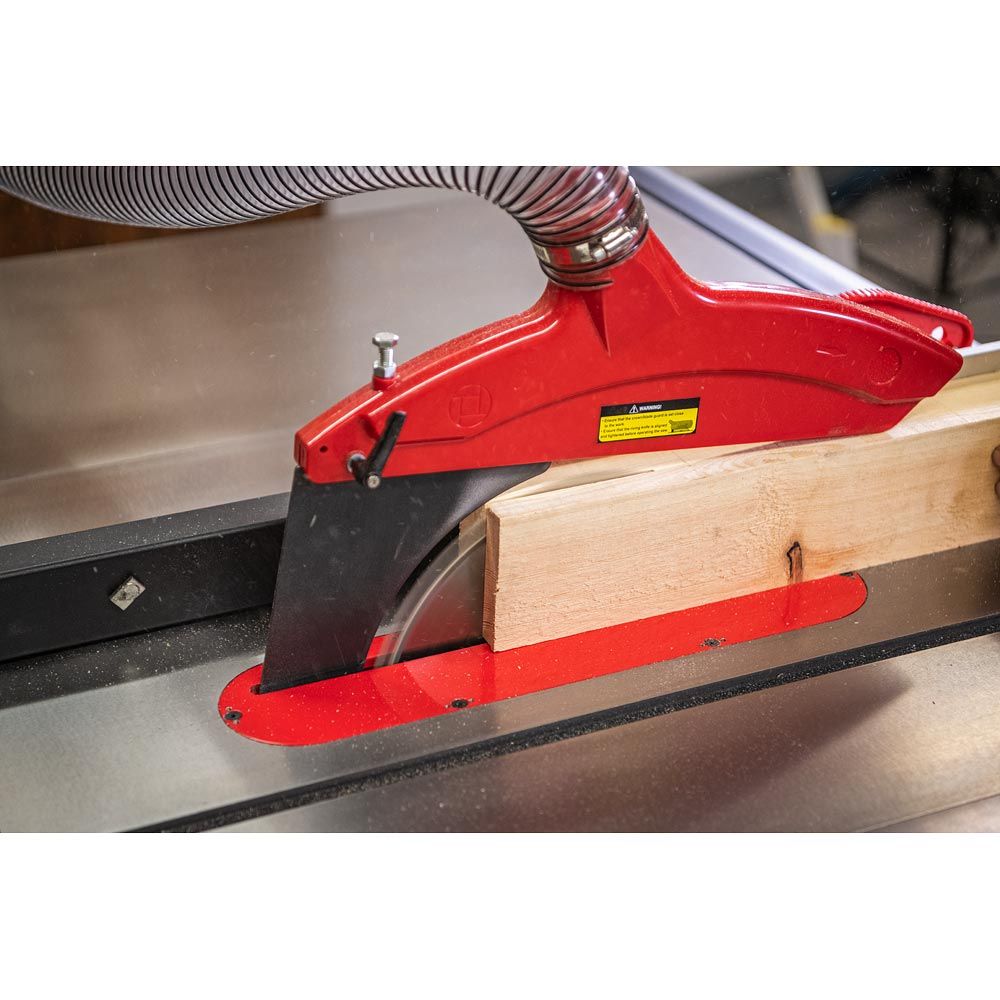

- 1x blade guard hose connection for dust extraction
- 1x 63mm connection on the blade guard hose
- 1x 100mm outlet at the rear of the machine
