Description

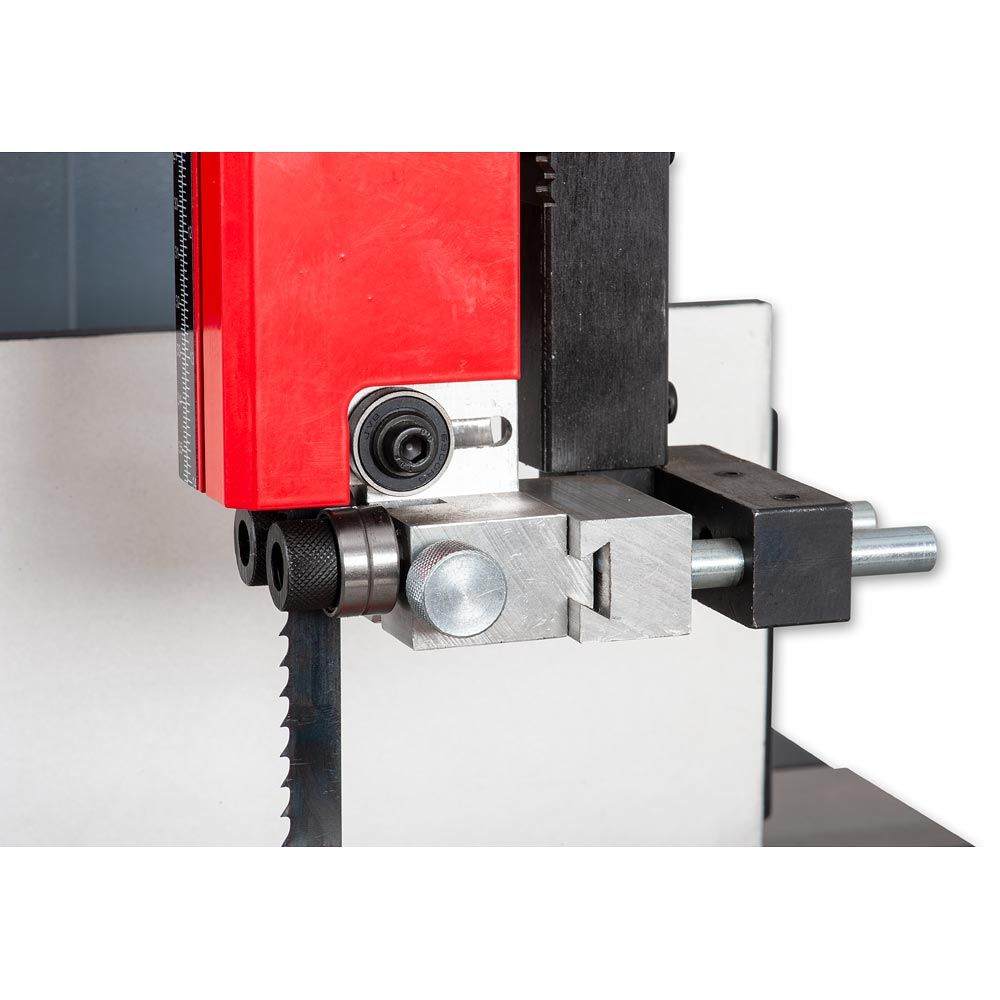

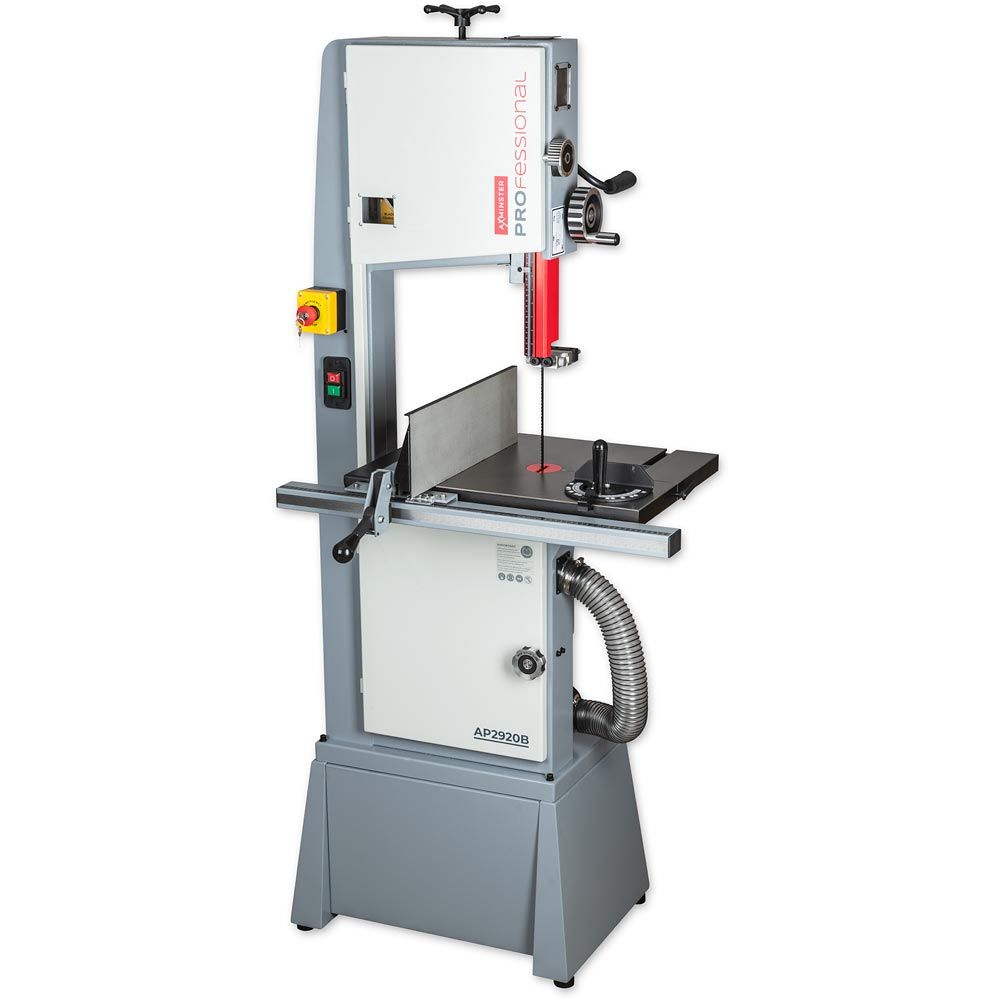

Introducing the Axminster Professional AP2920B Bandsaw, a robust and versatile machine designed for woodturners and cabinet makers. This bandsaw offers a large capacity of up to 300mm max cutting height and is built on a tubular steel frame for reduced vibration. The cast iron table provides maximum support to large workpieces, while the independent adjustable blade guide system ensures quick and easy setup.
- Large capacity up to 300mm max cutting height
- Tension release lever for straightforward blade changes

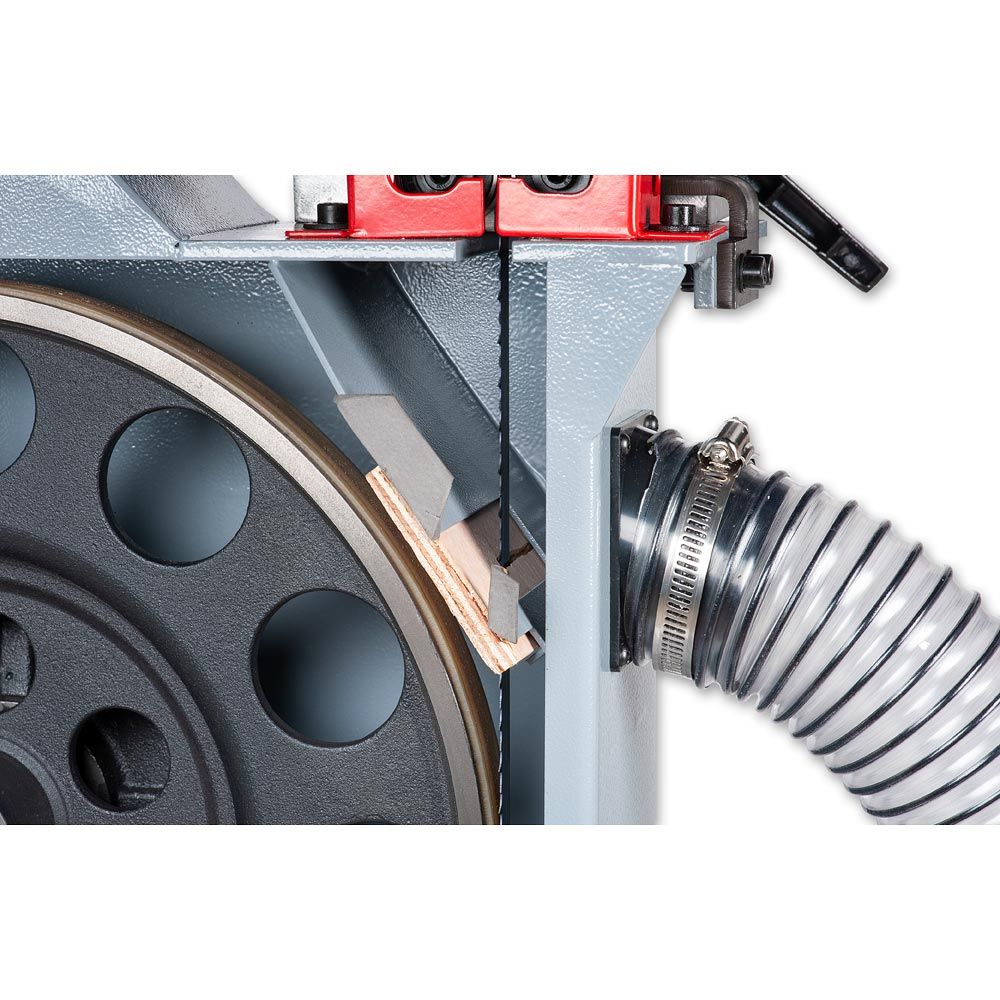

- Efficient, two point dust extraction via dual outlet
- Generous depth of cut at 310mm

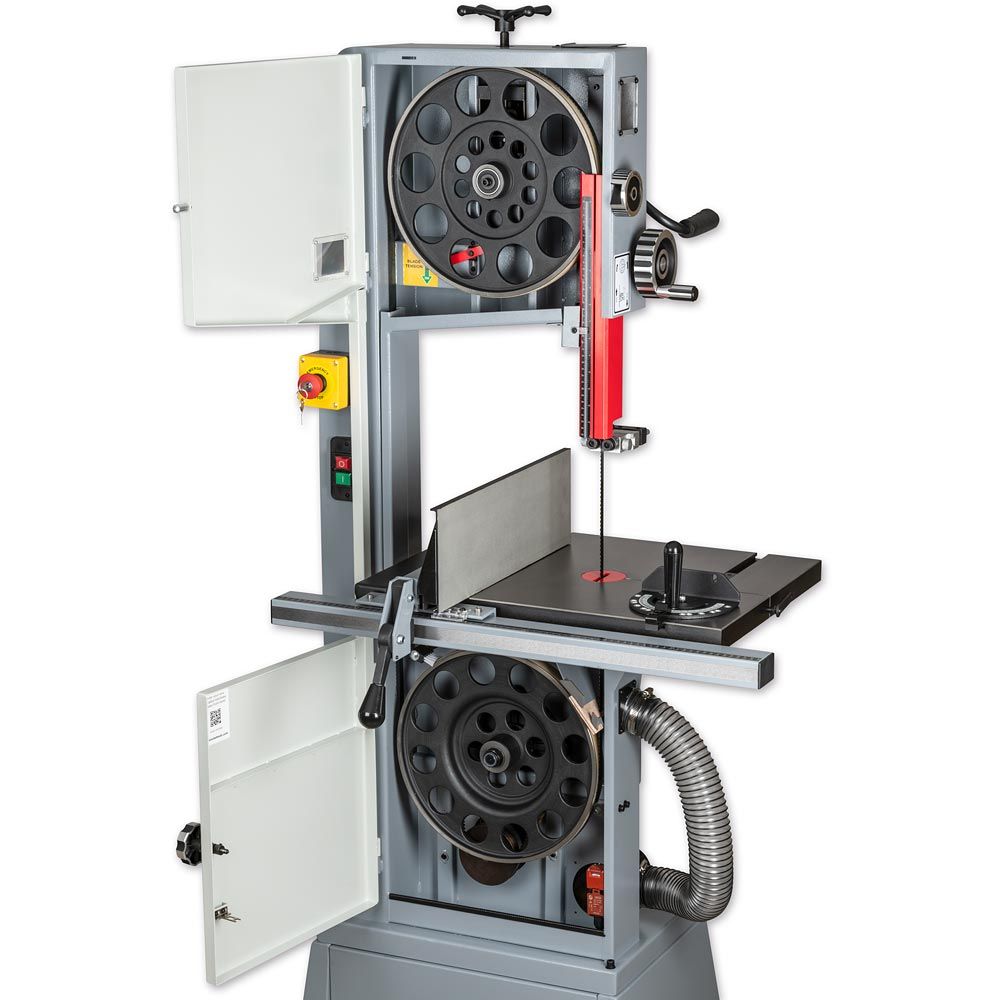

- Cast iron blade wheels reduce vibration and maintain blade speed

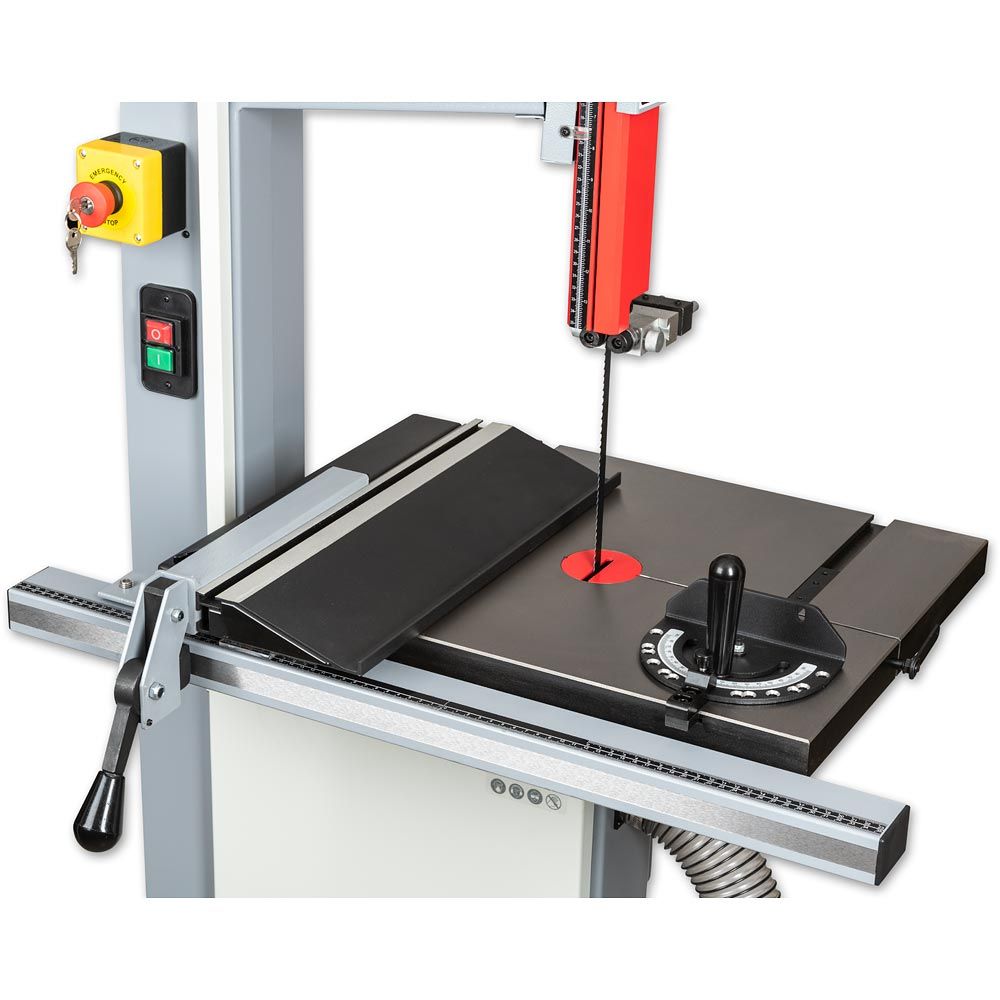

- Dual slots for mitre gauge are perfect for jig use

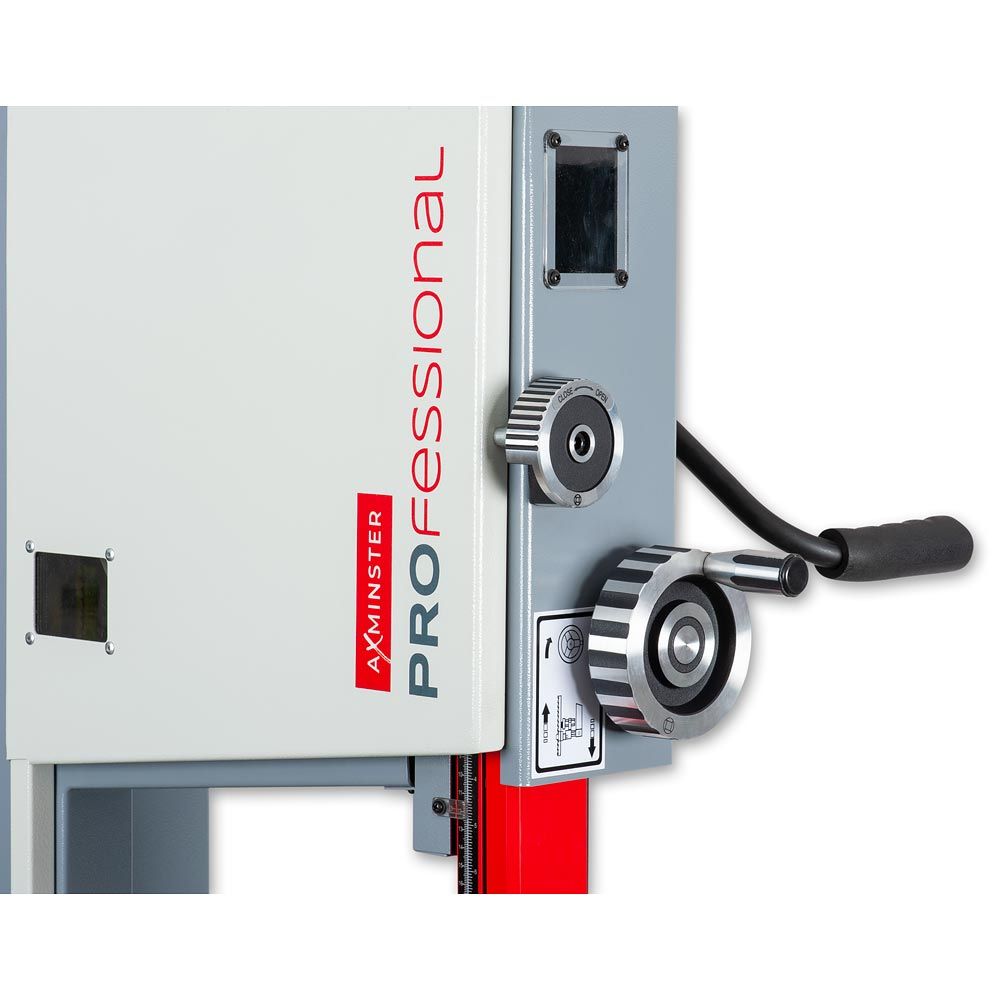

- Rack & pinion upper guide adjustment for easy blade guide adjustments
- Hi/lo auxiliary rip fence locks positively and provides dual height options
- High quality handwheels ensure smooth adjustment
Technical Data
| Specification | Value |
|---|---|
| Bandsaw Blade Length | 2,920 mm (115") |
| Bandsaw Wheel Diameter | 355 mm |
| Blade Speed | 800 m/min |
| Blade Width (Min-Max) | 3 mm to 19 mm |
| Dust Extraction Outlet | 100 mm & 63 mm |
| Max Cutting Height | 300 mm |
| Max Width of Cut | 345 mm |
| Min Extraction Airflow Required | 1,200 m³/hr |
| Model | AP2920B |
| Nett Weight | 122 kg |
| Overall L x W x H | 760 mm x 875 mm x 1,910 mm |
| Plug Fitted | UK 3 pin plug |
| Power | 1.7 kW |
| Rating | Trade/Professional |
| Sound Power Level (LwA [Uncertainty K]) | 90 dB(A) [3.0 dB] |
| Sound Pressure Level (LpA [Uncertainty K]) | 72.5 dB(A) [3.0 dB] |
| Table Height | 1,015 mm |

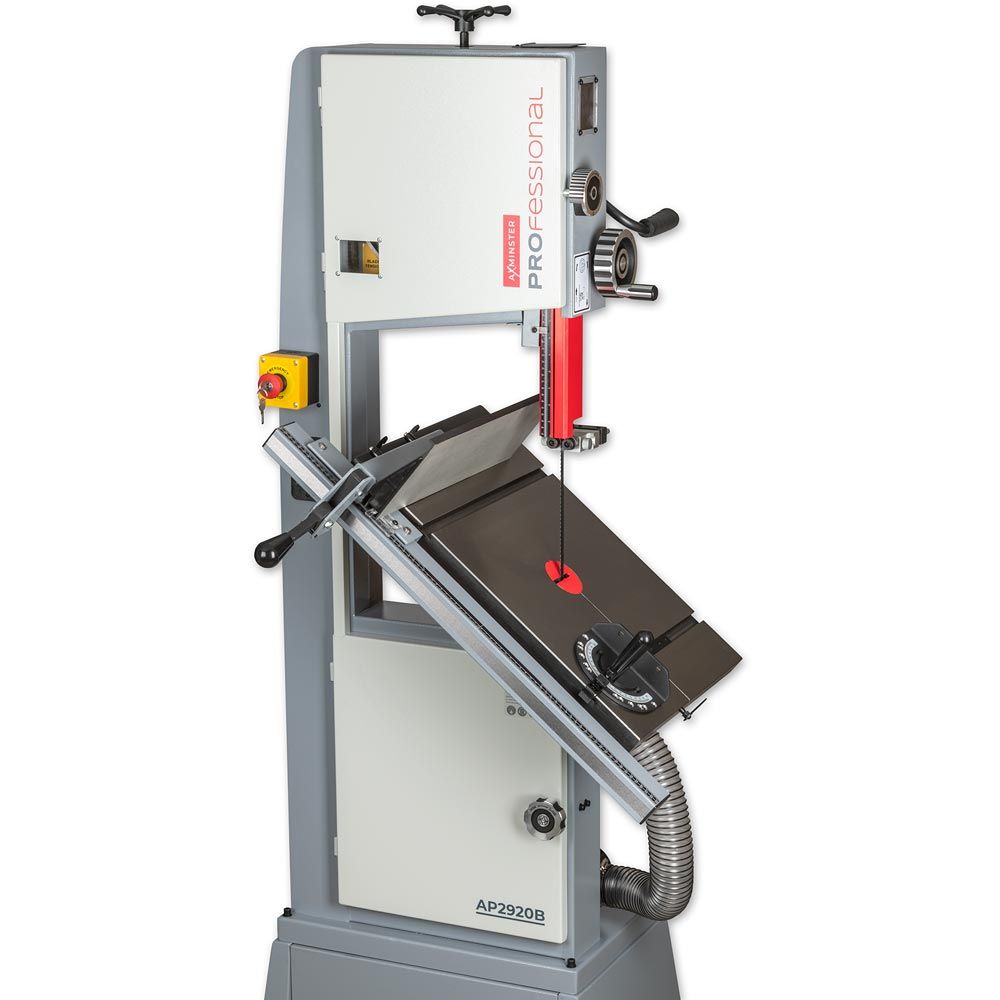

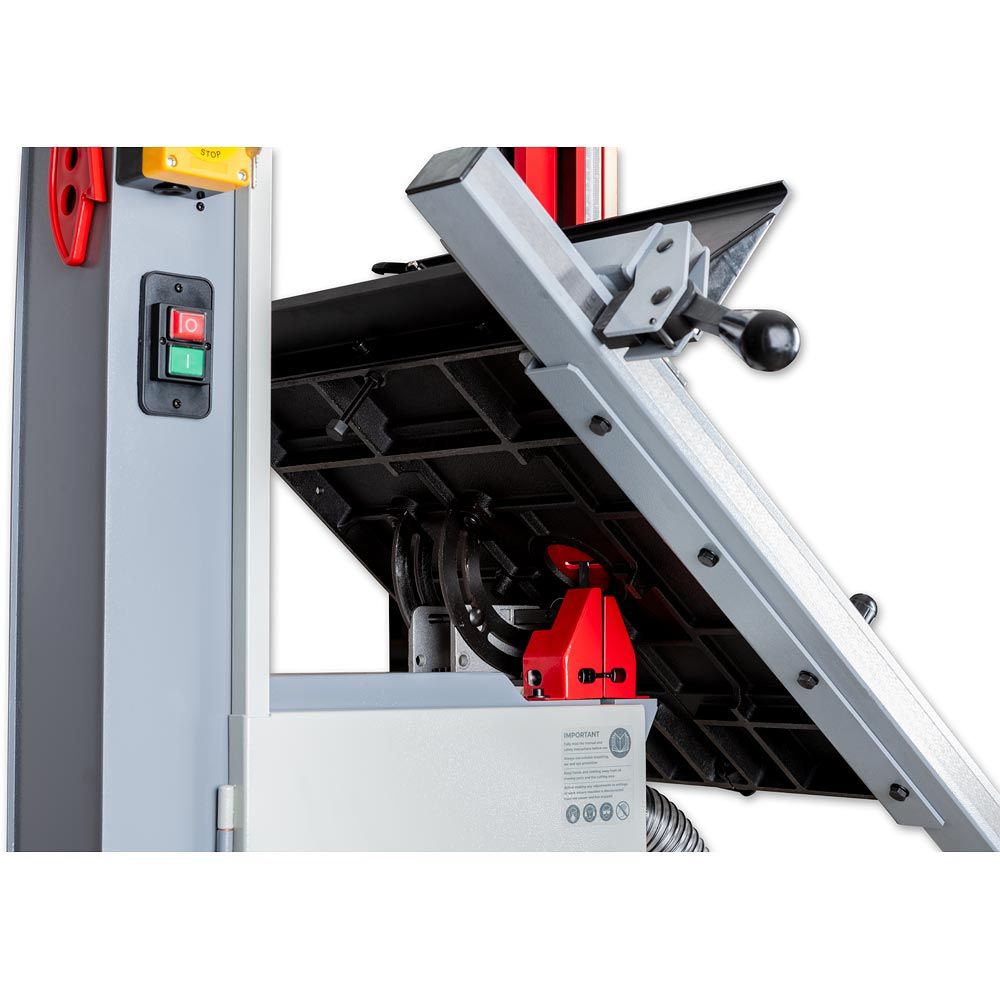

| Table Tilt | 0° - 45° |
| Voltage | 230 V |
Includes
- 1x premium mitre fence with useful pre-set angle stops
- 1x blade - 2,920mm x 12mm x 6tpi
