Description
The Axminster Professional AP254SB Saw Bench is built for daily use in a busy workshop. It has been carefully designed to include many useful features. It offers an impressive 80mm depth of cut and with its cast iron, right-hand extension table allowing a generous 695mm width of cut to the fence. The motor, castings, and trunnions are all mounted on the saw’s chassis. This is a much better and stronger option as it doesn’t place any stress on the underside of the table.
- Cast iron tables provide smooth running, reduced vibration, and long life for your table saw.
- The trunnion assembly is mounted independently on the saw’s frame, relieving stress on the table.

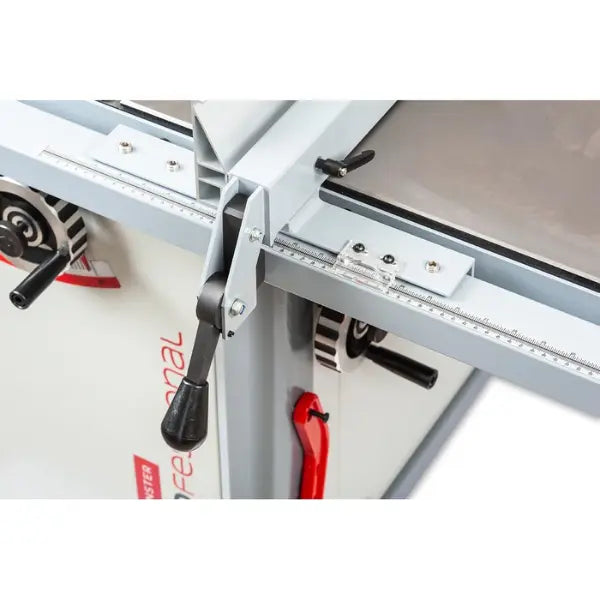

- Solid “T” style dual height rip fence for accuracy in close blade work and heavy-duty ripping.
- Right-hand extension table gives a maximum cutting width of 695mm.
- Quiet and powerful 2.5kW induction motor maintains blade speed for consistent cuts.
- Twin T-slot mitre fence slots on both sides of the blade, ideal for jig use.

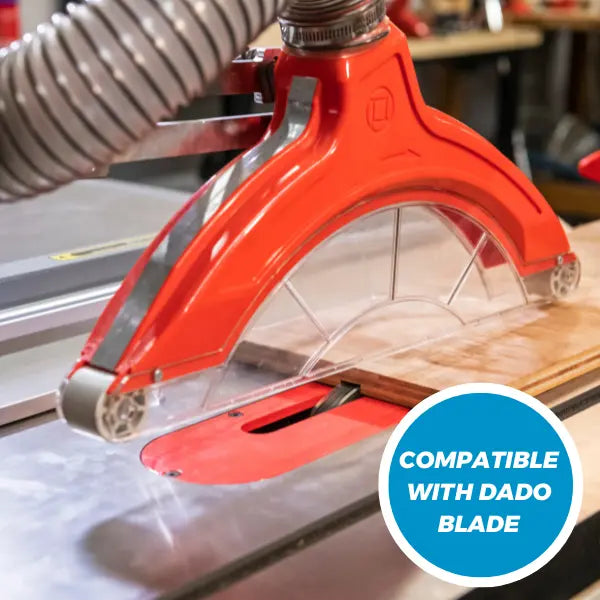

- Compatible with Dado Blade for easy groove cutting.

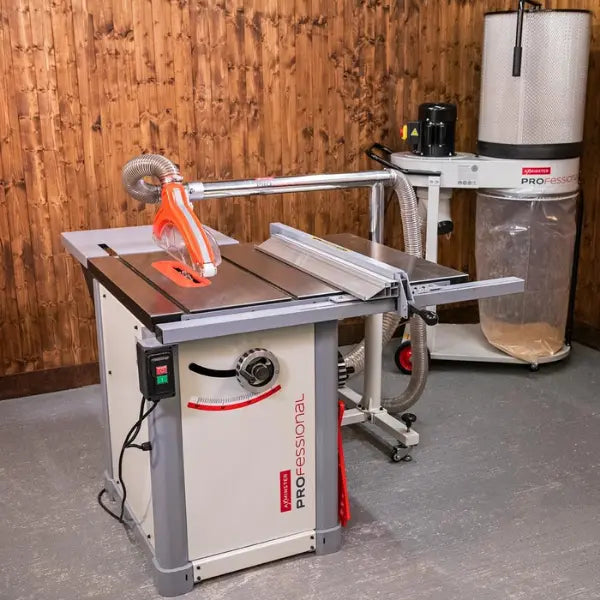

- Dual dust extraction ports keep the saw line clear.
- Heavy-duty metal handwheels for smooth blade adjustment.
Technical Data
| Blade Diameter | 254 mm |
| Blade RPM | 4,000 rpm |
| Blade Tilt | 0° to 45° |
| Bore Size | 30 mm |
| Dust Extraction Outlet | 100 mm & 63 mm |
| Max Depth of Cut @ 45º | 56 mm |
| Max Depth of Cut @ 90º | 80 mm |
| Max Width of Cut with Fence | 695 mm with R/H Ext |
| Min Extraction Airflow Required | 1,000 m³/hr |
| Nett Weight | 175 kg |
| Overall L x W x H | 1,610 mm x 1,210 mm x 1,125 mm |
| Power | 2.5 kW |
| Rating | Trade/Professional |
| Sound Power Level LwA [Uncertainty K] | 97.4 dB(A) [3.0 dB] |
| Sound Pressure Level LpA [Uncertainty K] | 80.5 dB(A) [3.0 dB] |
| Spindle Diameter | 5/8″ |
| Table Height | 850 mm |
| Table Size | 580 mm x 800 mm |
| Voltage | 230 V |
Includes
- Axcaliber TCT general purpose blade
- R/H side and rear extension tables

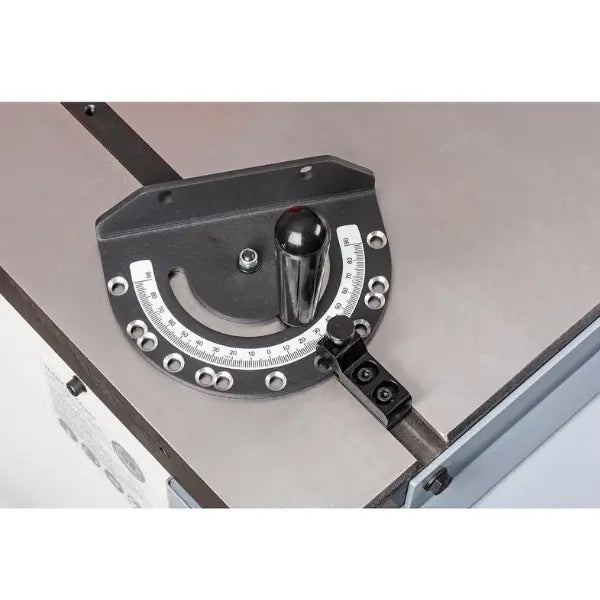

- Premium mitre gauge with pre-set angle stops
