Description

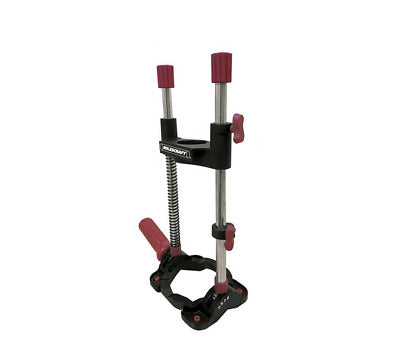

A portable drill stand for use almost anywhere, now you can drill straight holes all the time. With the DrillMate drilling straight or angled holes, drilling on the edge of a board or even round stock has never been easier. This all-metal construction DrillMate drill guide provides the precision of a drill press with the ease of a hand drill.
- Self-centering base

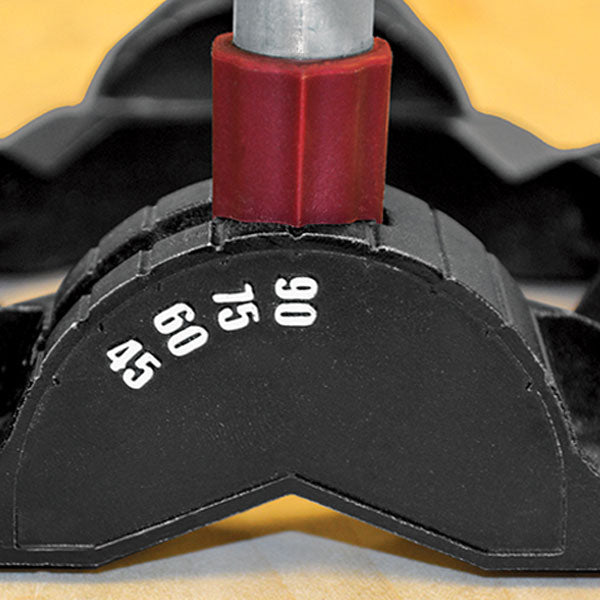

- Angle readout for setting drilling angles to 45°, 60°, 75° and 90°
- V-groove for drilling on round stock
- Non-slip TPE feet, prevent slipping and marring on the work surface
- Mounting holes for mounting with screws when needed
Technical Data

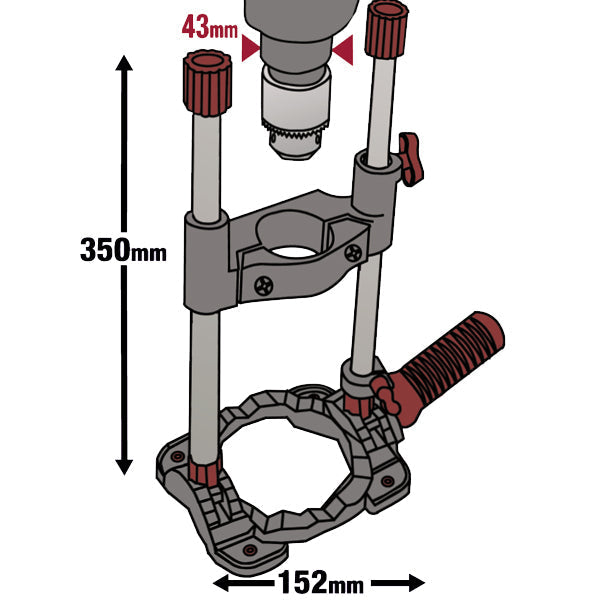

| Material | All Metal Body |
| Guide Head Inside Diameter | 1-3/4" (43mm) |
| Guide Head Height | 1" (25mm) |
| Compatible with | Euro style drills with 43 mm collar |
| Base | 5.5" (140mm) x 4.25" (108mm) |
| Base Opening | 3.5" (90mm) diameter |
| Overall Height | 14" (355mm) |
| Guide Bar Diameter | .55" (14mm) |
| Inside Distance Between Guide Bars | 3.98" (101.2mm) |
Includes
1x Drill Guide
