Description

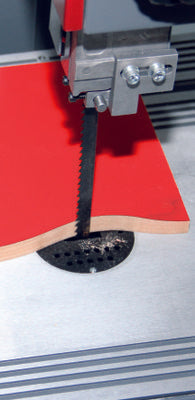

The TC-SB 305 U bandsaw is a powerful, high-quality floor-mounted tool for exacting demands. It offers ambitious DIY enthusiasts numerous options for making exact longitudinal, miter or free-hand cuts in wood, plastic and similar materials.

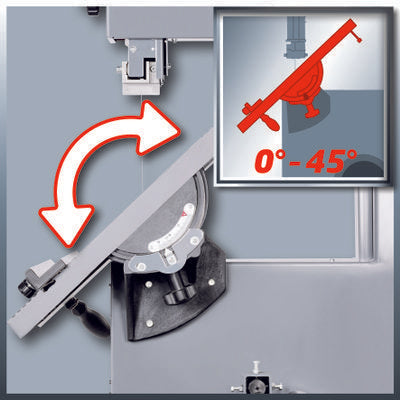

- Infinitely adjustable saw table (0° to 45°)

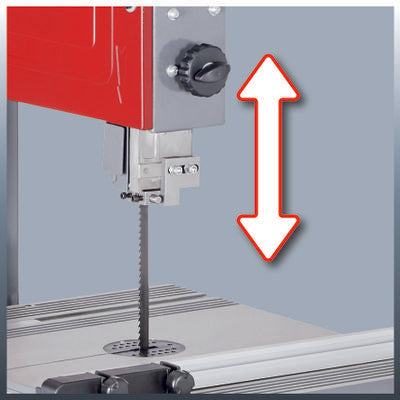

- Height adjustment of the blade guard without tools

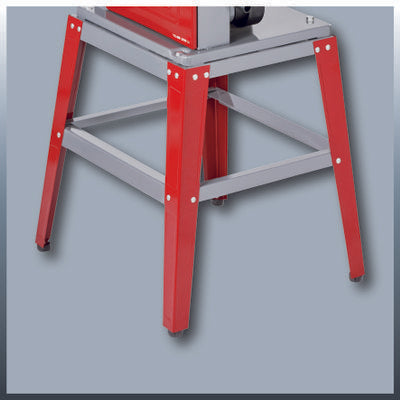

- Support feet for safe stability

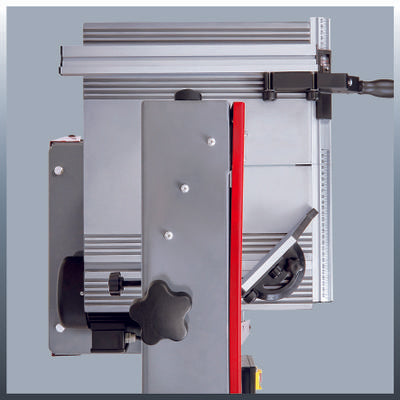

- Infinitely adjustable angle stop (-60° - 60°)
- Parallel stop with quick adjustment for straight cuts
- Zero voltage switch for protection in case of power failures

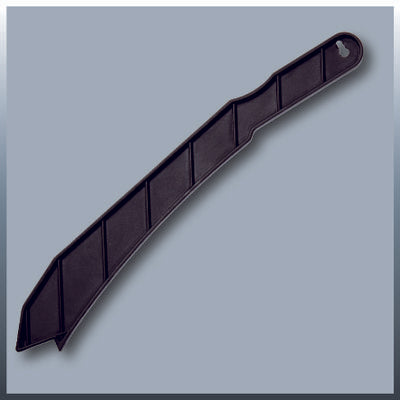

- Push stick for safe use

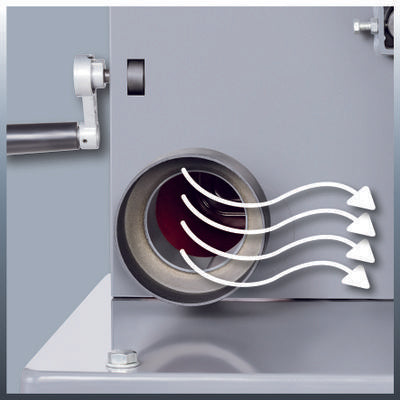

- Connection for extractor d=70 mm with adapter d=100 mm
- Belt run adjustment using the top roller

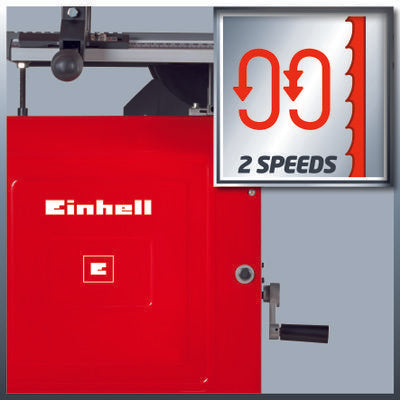

- 2 bandsaw speeds can be set using belt drive
Technical Data
| Mains supply |
220-240 V | 50 Hz
|
| Power | 750 W |
| Idle speed | 1400 min^-1 |
| Throat | 305 mm |
| Saw band |
2320 mm x 12.7 mm
|
| Number of saw teeth | 4 / 25,4 mm |
| Saw band speed |
370 m/min - 800 m/min
|
| Number of speed steps | 2 settings |
| Max. cutting height at 45° | 75 mm |
| Max. cutting height at 90° | 170 mm |
| Size of working table |
495 mm x 390 mm
|
| Table tiltable | 0 ° - 45 ° |
| Diameter of suction adapter | 100 mm |
Includes
1x Bandsaw
