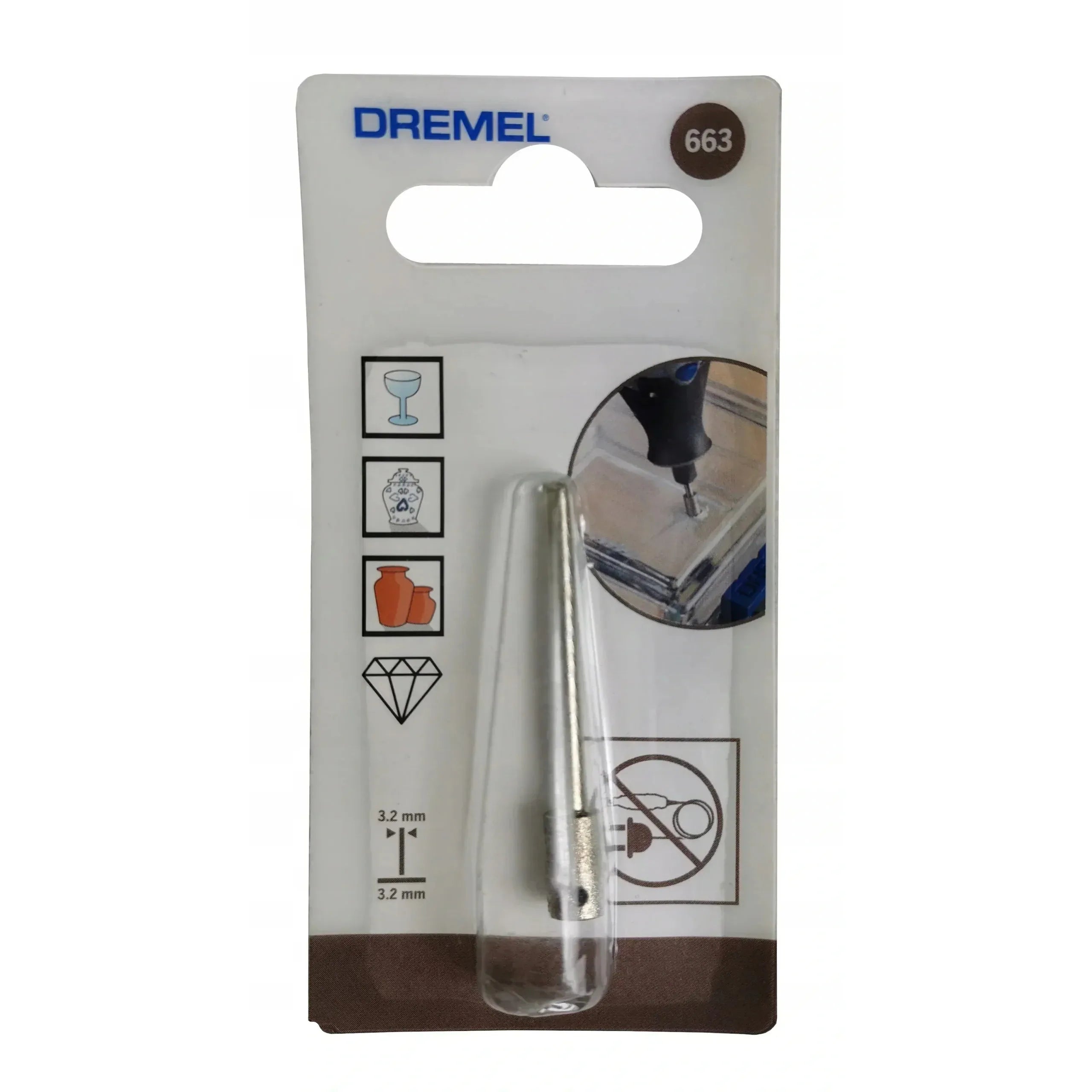

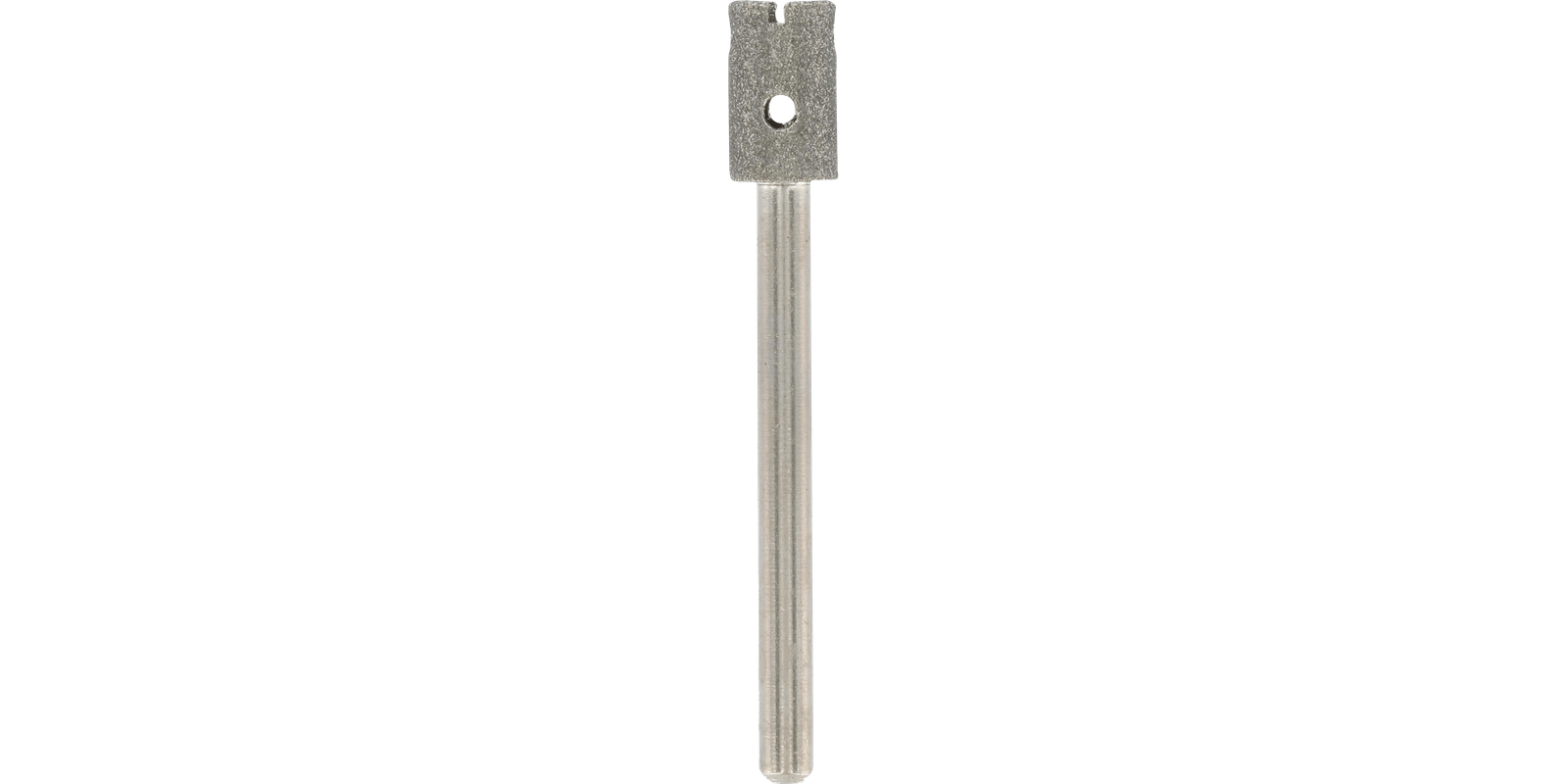

Dremel Glass Drilling Bit (663)
This diamond-impregnated core-style bit features superior long life
Is ideal for drilling holes in both flat and contoured surfaces e.g. glass or ceramic wall. Diamond grit is a full 360-degrees around the circumference of the bit which allows it to be used in a rasping action to enlarge a hole if needed.
When cutting a hole, ensure your work piece is well secured and do not apply excessive pressure to avoid cracking the glass.
Apply cooling liquid or water to the material. Hold your tool at a 45 degree angle to go into the material.
Then gradually lift your tool up to make a 90 degree drill. Apply drops of water / cooling liquid to the work piece for a clean drill operation. You can take the accessory out of the material to apply water or cooling liquid.
Use with cordless tools only.
Materials to use on
For use on glass, ceramic wall tile, glass block, glass bottles, jewelry - flat or contoured surfaces.
Shank diameter 3,2 mm
Working diameter 6,4 mm
Working length 10 mm
Accessory length 44,0 mm
Width 6,0 mm
Length 6,0 mm
Height 45,0 mm
