Description

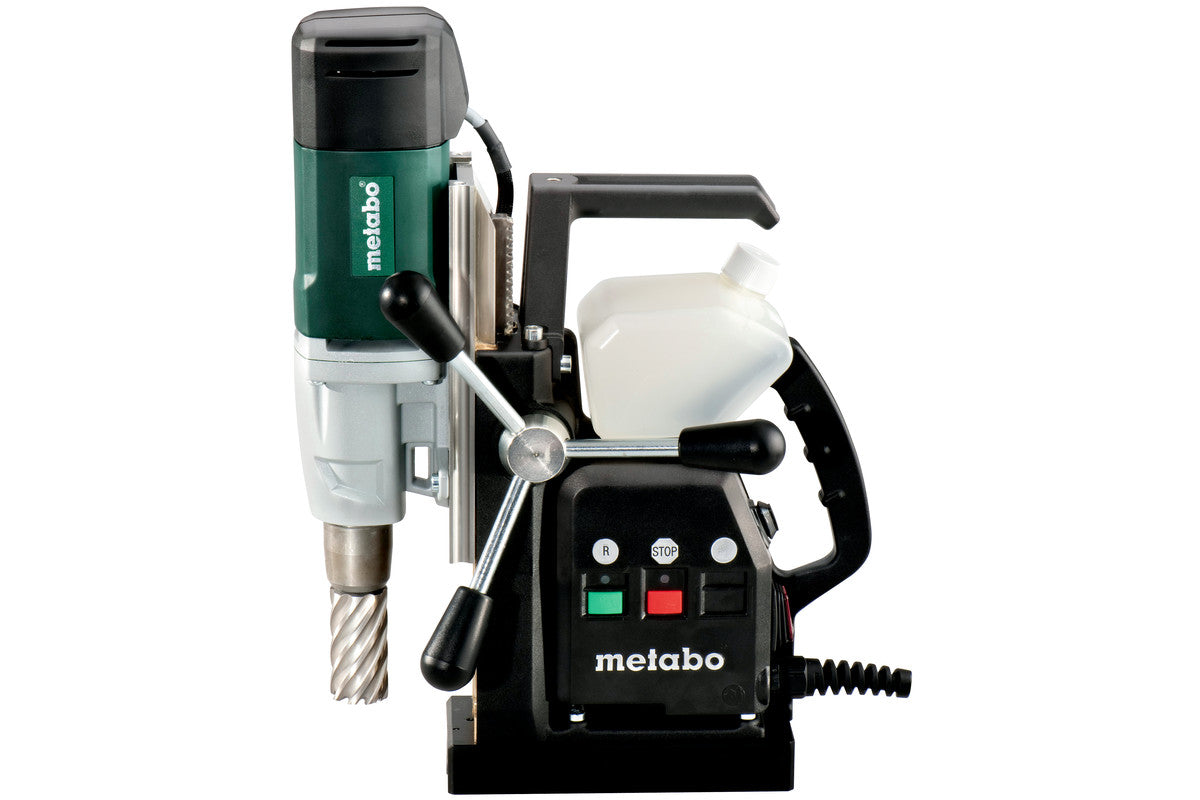

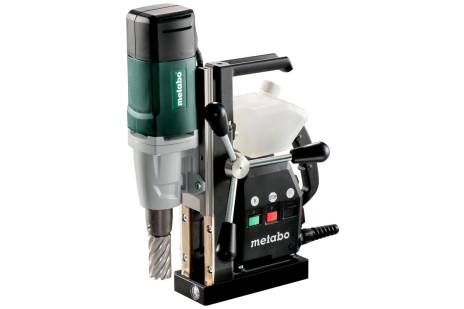

The Metabo Magnetic Core Drill MAG 32 (600635500) offers exceptional drilling precision with a strong magnetic base ideal for vertical and overhead tasks. Powered by a robust Metabo marathon motor, it ensures a long service life and includes an integrated coolant container for managing tool temperature effectively.
- Magnetic core drill suitable for core, spiral drills, and countersinks
- High magnetic base holding power for versatile positioning
- Integrated LED light for optimal visibility
- Safe motor activation only when magnetized
- User-friendly features such as easy tool change and transport handle
Technical Data
| Rated input power | 1000 W |
| Output power | 520 W |
| Max. drill-Ø with core drill | 32 mm |
| Max. drill-Ø with spiral drill | 13 mm |
| Maximum drilling depth | 50 mm |
| No-load speeds | 700 rpm |
| Speeds at rated load | 450 rpm |
| Bit retainer | Weldon shaft 19 mm (3/4") |
| Weight | 11.9 kg |
| Cable length | 5 m |
| Torque | 50 Nm |
| Max. depth of feed | 160 mm |
| Max. magnetic holding force | 12250 N |
| Dimensions of the magnet base | 90 x 189 mm |
| Height carriage lowest position | 343 mm |
| Height carriage topmost position | 490 mm |
Includes
- 1x Ejector pin 75 mm
- 1x Safety strap
- 1x Hexagon socket wrench SW 4
- 1x Swarf protection guard
- 1x Transport case
