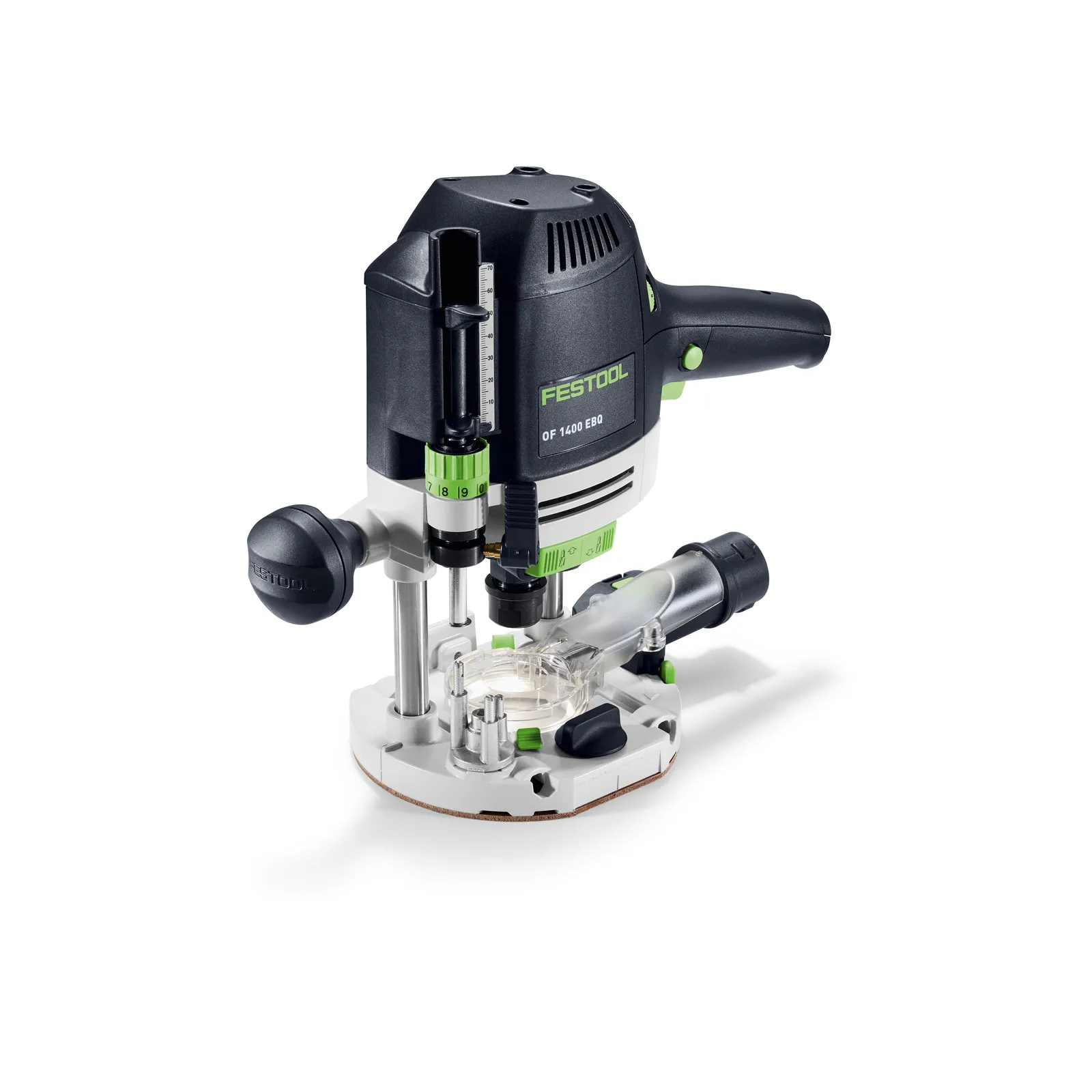

Description
The Festool Router OF 1400 EBQ-Plus combines power with ease of use, featuring a robust design for precise routing tasks. Weighing just 4.5 kg, it offers a versatile 70 mm routing stroke, LED lighting, and efficient dust extraction.
- Stable torsion-resistant construction with double guide column clamping
- Convenient tool-free change of copying rings and travelling soles
- Fine adjustment of milling depth accurate to 1/10mm

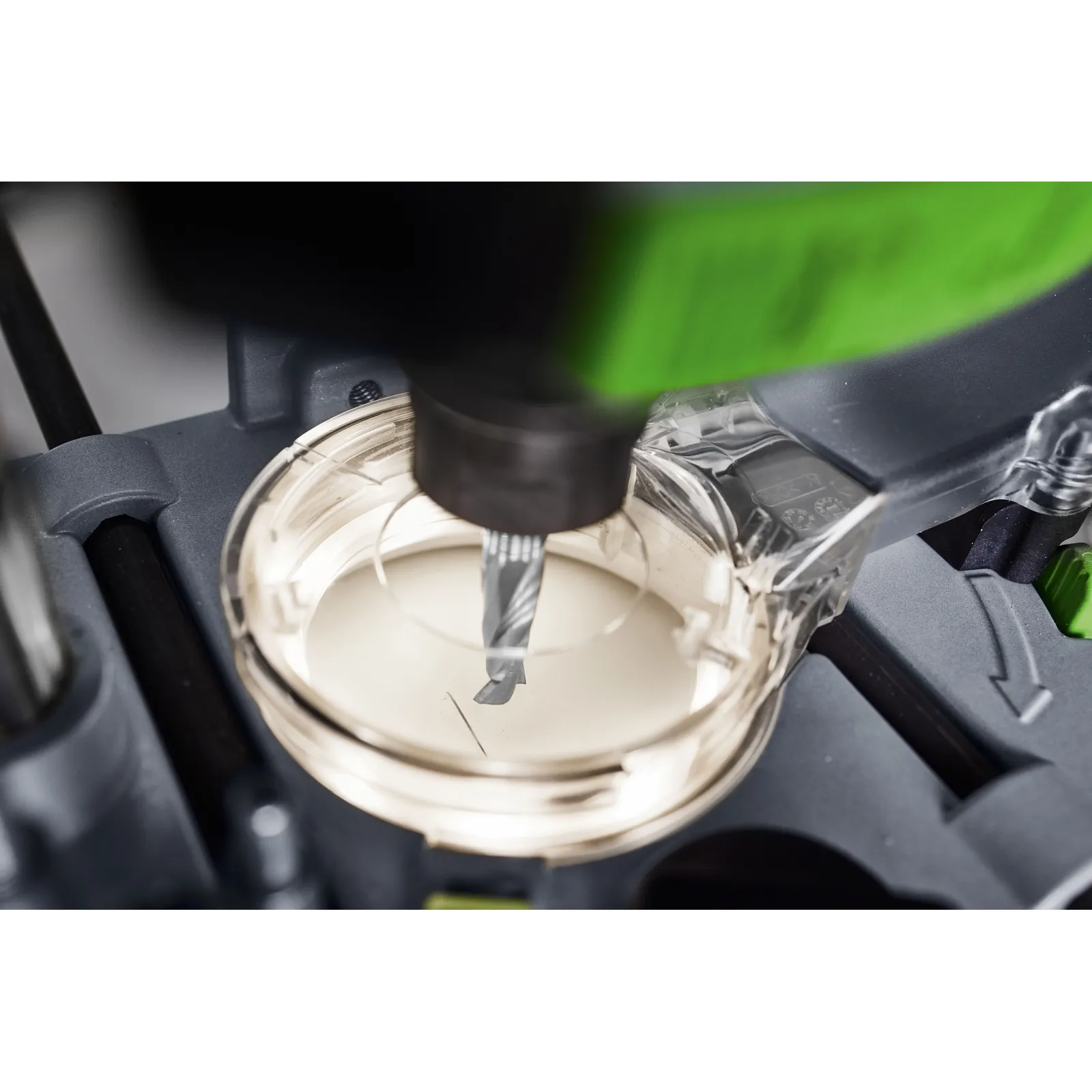

- Up to 99% dust extraction efficiency with chip catcher
- Multifunctional MMC electronics for speed regulation on various materials
Technical Data
| Power consumption: | 1 400 W |
| Idle engine speed: | 10 000 - 22 500 min⁻¹ |
| Clamp diameter: | 6 - 12.7 mm |
| Routing stroke: | 70.00 mm |
| Routing depth fine adjustment range: | 8.00 mm |
| Bench opening: | 63.00 mm |
| Dust extraction connection diameter: | 27/36 mm |
| Cable length: | 4.00 m |
| Product weight without accessories: | 4.60 kg |
| Transport weight incl. accessories: | 9.30 kg |
| Drive type: | Mains |
| Noise and vibration — Routing: Uncertainty (vibration) K: | 1.50 m/s² |
| Noise and vibration — Routing: Uncertainty (noise) K: | 1.50 dB |
| Noise and vibration — Routing: Total vibration average, Ah: | 2.50 m/s² |
| Noise and vibration — Routing: Standards series EN: | 62841-2-17 |
| Noise and vibration — Routing: A-weighted sound pressure level, LpA: | 98.00 dB(A) |
| Noise and vibration — Routing: A-weighted sound power level, LWA: | 106.00 dB(A) |
| Festool article number: | 578940 |

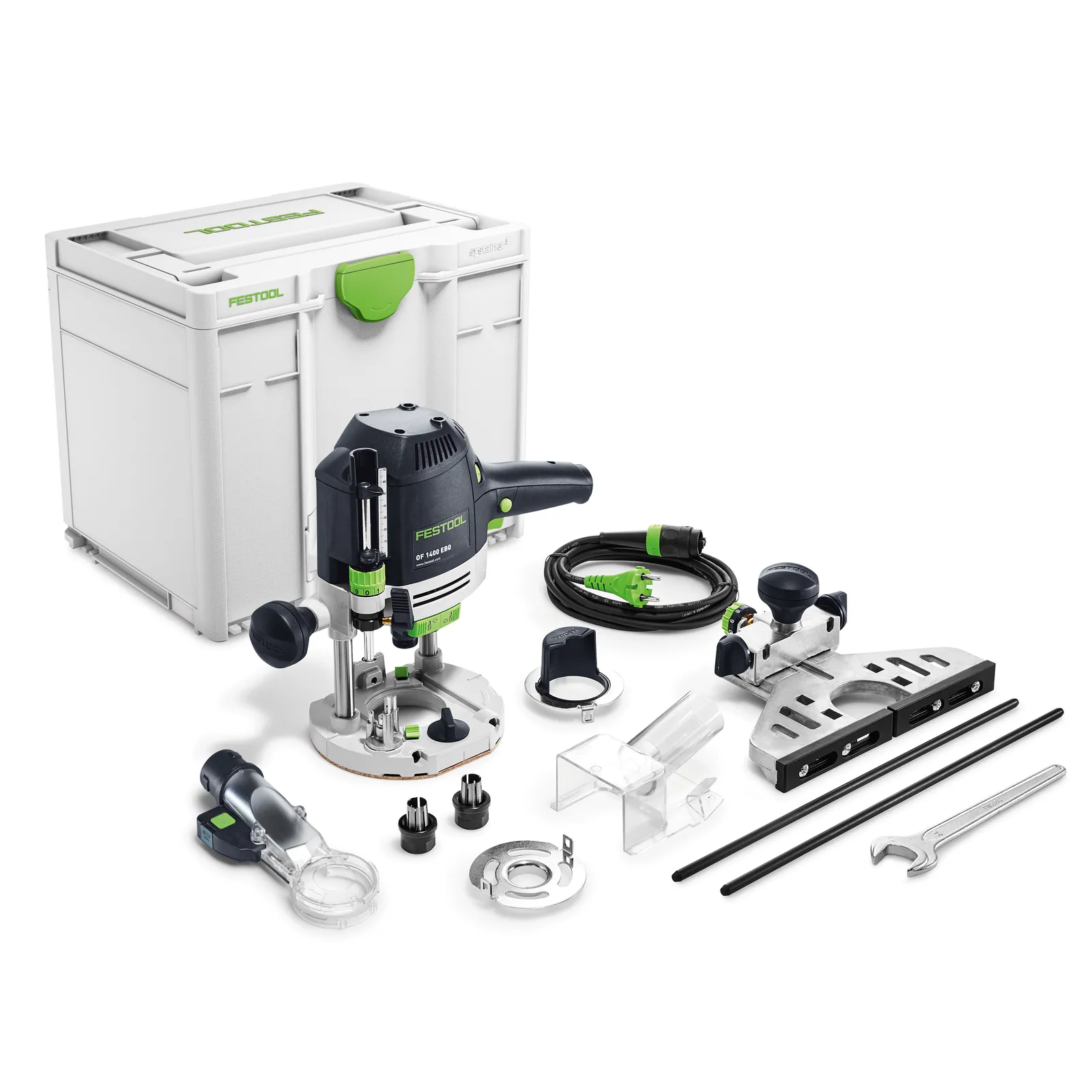

Includes
- Extraction bonnet with light module LM-OF 1400
- Collet SZ-D 8,0/OF 1400/2000/2200
- Collet SZ-D 12,0/OF 1400/2000/2200
- Parallel side fence SA-OF 1400
- Copying ring KR-D 30,0/OF 1400
- Extraction hood, top
- Chip deflector KSF-OF 1400
- Open ended spanner, WAF 24
- Plug it-cable H05 RN-F-4
- Systainer³ SYS3 M 337
