Description

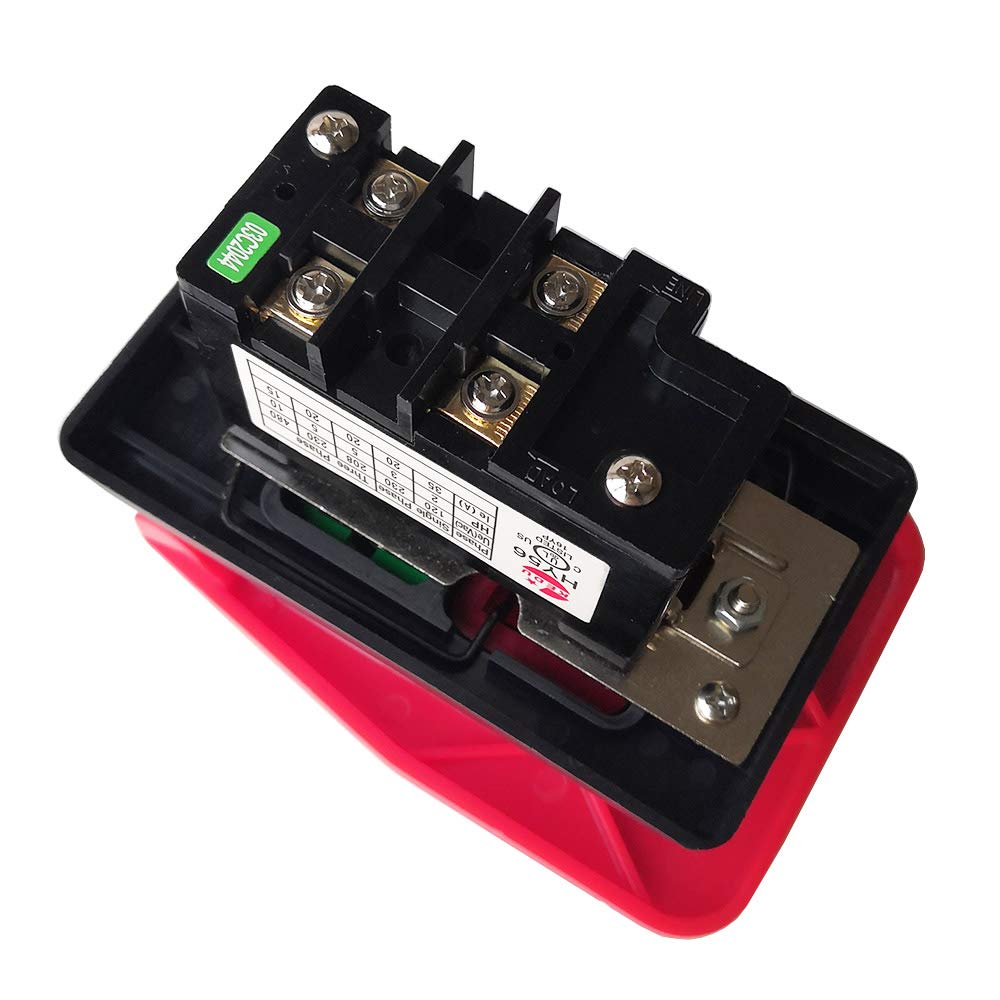

The Kedu HY56 230V /480v switch is commonly used on small woodworking machines. Rated at 16 amp, it will be suitable for induction motors up to 10hp.
- Simply connect using insulated spade terminals, the connections being clearly marked for input and output.
- It is a no-volt-release type of switch, providing safety in the event of an interruption of power.
- Fitted with a dust cover and having positive action push buttons plus a large, red self locking Emergency Stop hinging cover.
- Replacement Switch for Table Saws
Technical Data
| Phase | Single Phase | 3 Phase |
| Volts | 230v | 480v |
| HP | 3 | 10 |
| Ie ( A ) | 20 | 15 |
Includes
1x Switch
Terminal Lugs not included
