Description

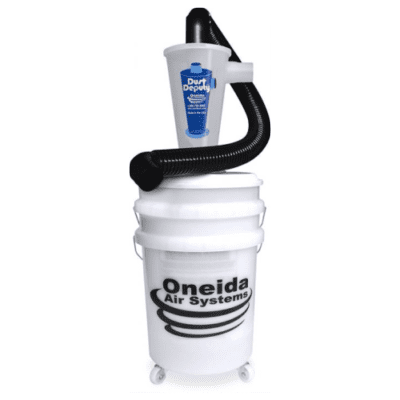

Upgrade any make and model wet/dry vacuum into a two-stage dust control system with our patented cyclone separator. The Dust Deputy® Deluxe removes over 99% of dust and debris from the airstream, containing it in an easy-to-empty 18.9-liter bucket, before it ever reaches the vacuum – virtually eliminating filter clogging and suction loss! The kit includes everything you need to connect to the vacuum, including 0.9 meters of static conductive hose, elbow adapters, caster wheels, and a dual “sidecar” bucket for attaching to the vacuum directly.
Eliminate Suction Loss With Any Wet/Dry Vacuum
The Dust Deputy® Deluxe lets you work the way you want to. Injection molded from translucent anti-static resin, the patented design of the Dust Deputy cyclone uses centrifugal force to capture and remove 99% of dust and debris from the airstream before it reaches your vacuum’s filter, eliminating clogged filters and suction loss!
The Dust Deputy will save you countless time and money on expensive replacement filters and dust bags, allowing you to keep working harder, longer, and safer than ever! This simple and efficient design can be adapted for use with any make, size, or model wet/dry vacuum and features tapered 50.8 mm ports for secure fittings using a variety of hose sizes.
Technical Data
| Airflow Rating | 50 – 150 CFM (1.42 – 4.25 m³/min) |
| Waste Capacity | 18.9 liters |
| Portable | Yes |
| Inlet Size | 50.8 mm O.D. (Tapered) / 44.5 mm I.D. |
| Outlet Size | 50.8 mm O.D. (Tapered) / 44.5 mm I.D. |
| Primary Build Materials | Polyethylene |
| Static Resistance Rating | Anti-Static |
| Color | Clear |
| Width | 305 mm |
| Depth | 305 mm |
| Height | 743 mm |
| Height to Center of Inlet | 638 mm / 689 mm with casters |
Includes
- Anti-Static Dust Deputy Cyclone Separator
- Two 18.9-liter, 100-Mil, Plastic Buckets: Sidecar Bucket (for mounting to shop vacuum) and Dust Bucket (with pre-cut lid with bolt and center holes)
- 0.9 meters x 50.8 mm Static Dissipative Hose
- Two 90 Degree Static Conductive Hose Elbow Adapters
- 127 mm – 63.5 mm Quick-Release Hose/Band Clamp
- Three 38.1 mm Non-Marking Casters Wheels
- Neoprene Foam Gasket and Mounting Hardware
