Description

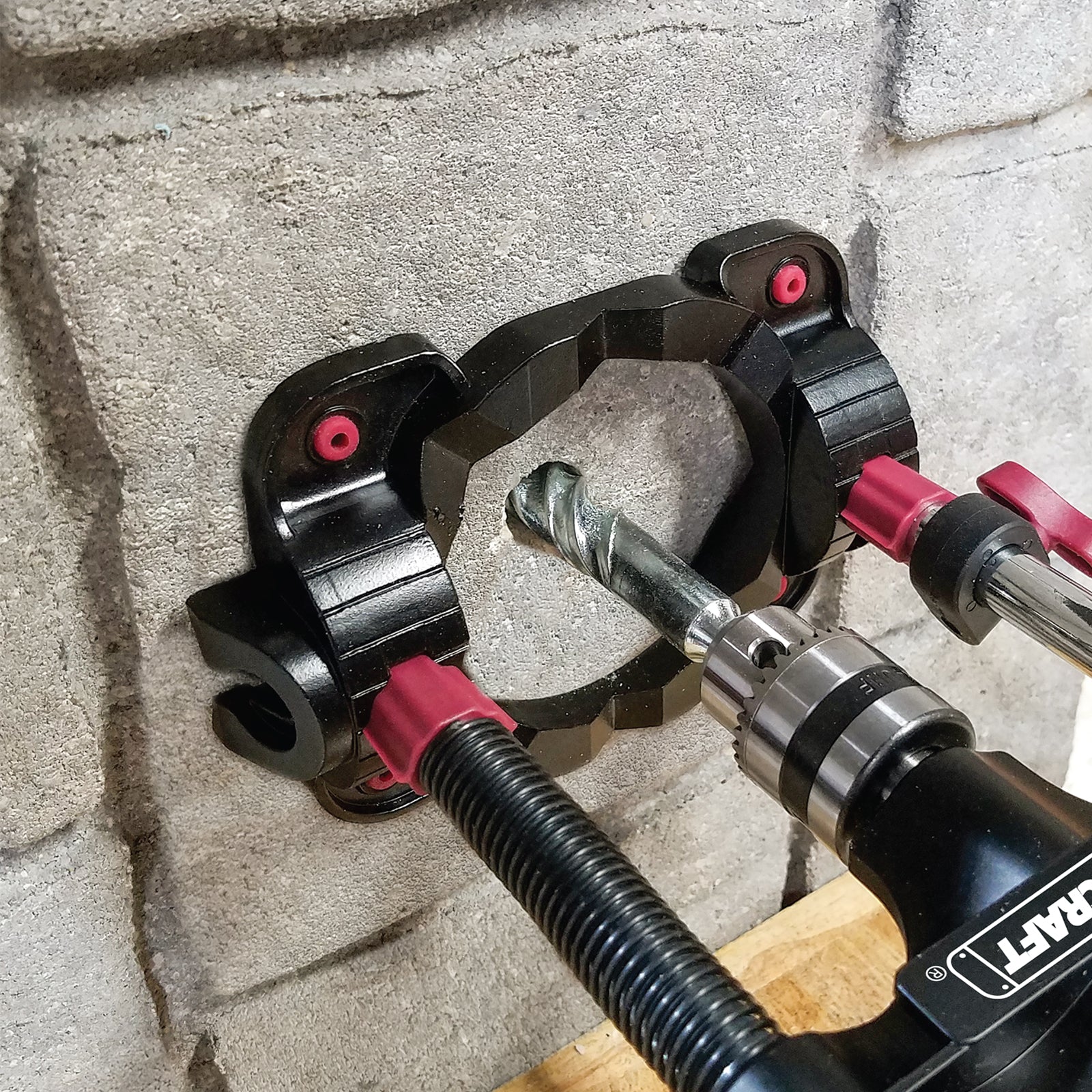

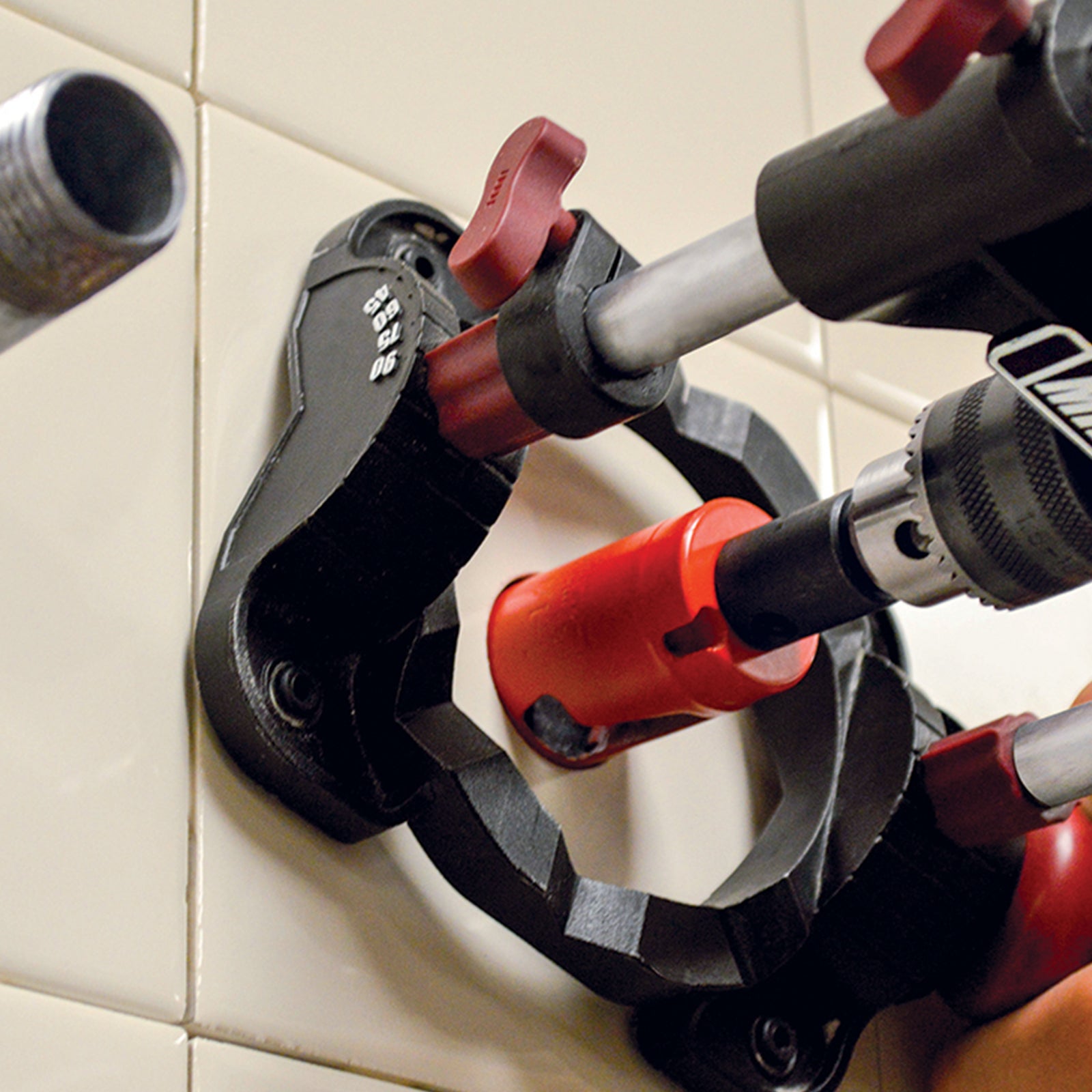

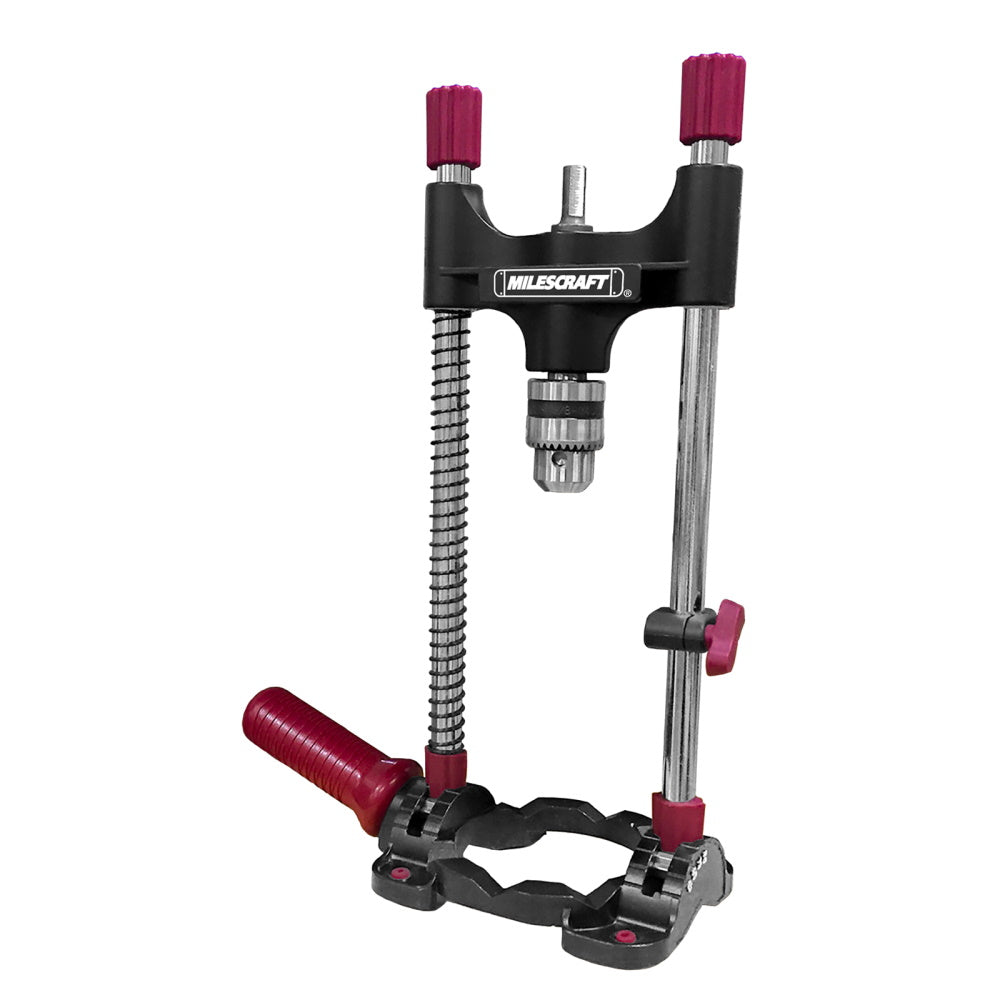

With the Milescraft DrillMate portable drill stand, you can drill straight holes, angled holes, on the edge of a board, or even round stock. Everyone knows that the success of many DIY projects depends on drilling straight and accurate holes. Now you can add a whole new level of accuracy with this drill guide jig when drilling holes with your standard hand drill.
- Self-centering drill guide base
- Angle readout for setting drilling angles to 45°, 60°, 75°, and 90°
- V-groove for drilling on round stock
- Non-slip TPE feet prevent slipping and marring on the work surface
- Mounting holes for mounting with screws when needed
*Not intended for use with impact drivers or hammer drills.
Technical Data
| Material |
Metal and plastic
|
| Chuck | 3/8" Keyed |
| 3/8" Chuck Thread | 3/8" x 24 thread |
| Spindle Shaft Diameter | .47" (12mm) |
| Spindle Shaft Length | 3.66" (93mm) |
| Drill Bit Clearance |
Always: Maximum 7.50"
|
| Drill Head Clearance with Spring and Depth Stop |
Max Travel: 6.30"
|
|
Minimum Drill Bit Length: 1.20"
|
|
| Drill Head Clearance without Spring and Depth Stop |
Max Travel: 8.23"
|
|
Minimum Drill Bit Clearance: 0.72"
|
|
| Base Dimension |
5.5" (140mm) x 4.25" (108mm)
|
| Guide Bar Diameter | .55" (14mm) |
| Base Opening |
3-1/2" in diameter
|
| Inside Distance Between Guide Bars |
3.98" (101.2mm)
|
| Compatible with |
3/8” and 1/2” power drills
|
Includes
1x Drill Guide

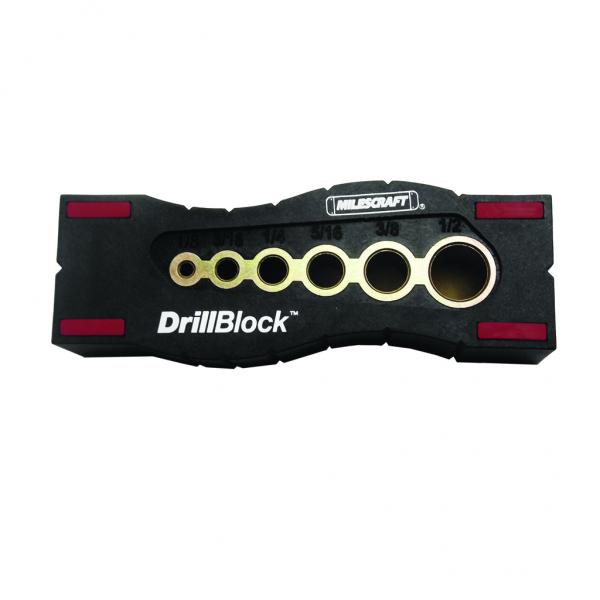

1x Drill Block
