Description

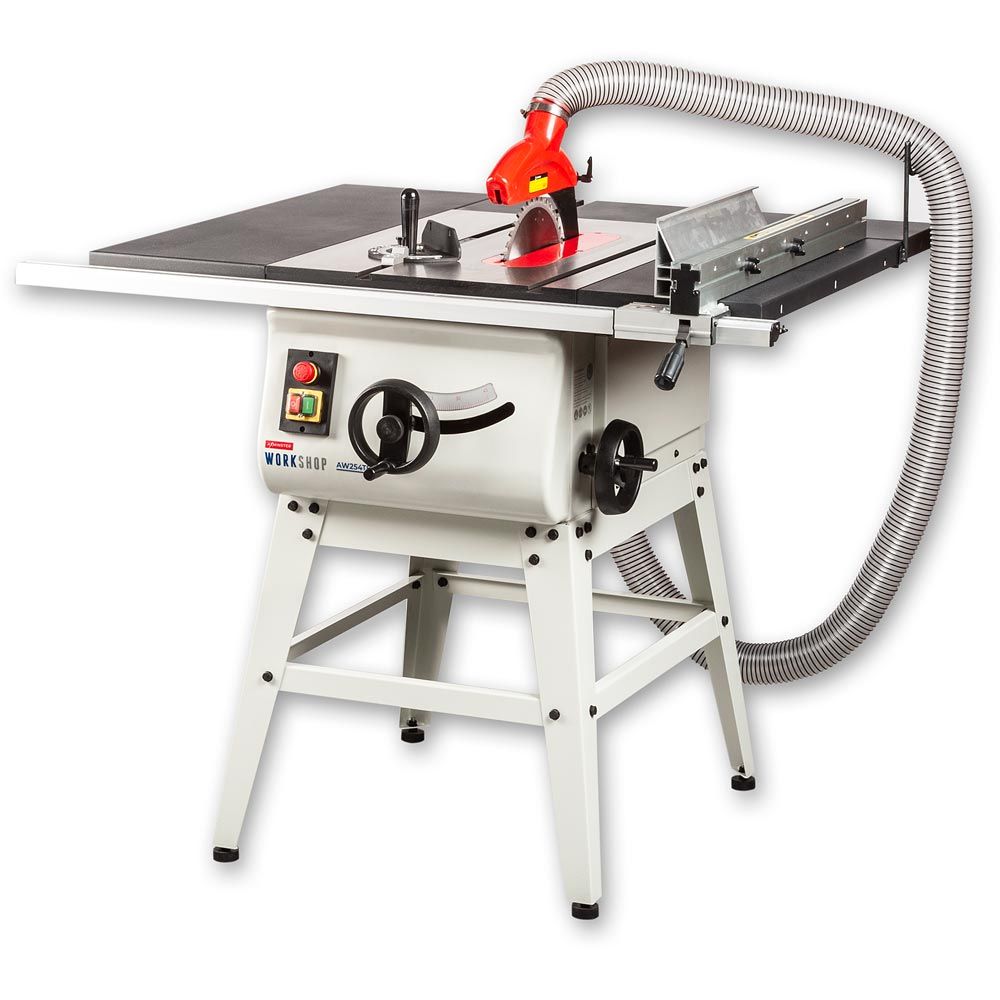

The Axminster Workshop AW254TS Table Saw is a powerful and versatile tool for your home workshop. Ideal for various crafts and DIY projects, it boasts an impressive 80mm cutting capacity at 90°. This saw is perfect for achieving your woodworking ambitions.
- Quiet and powerful 1.5kW motor
- Super smooth tilt and height adjustment

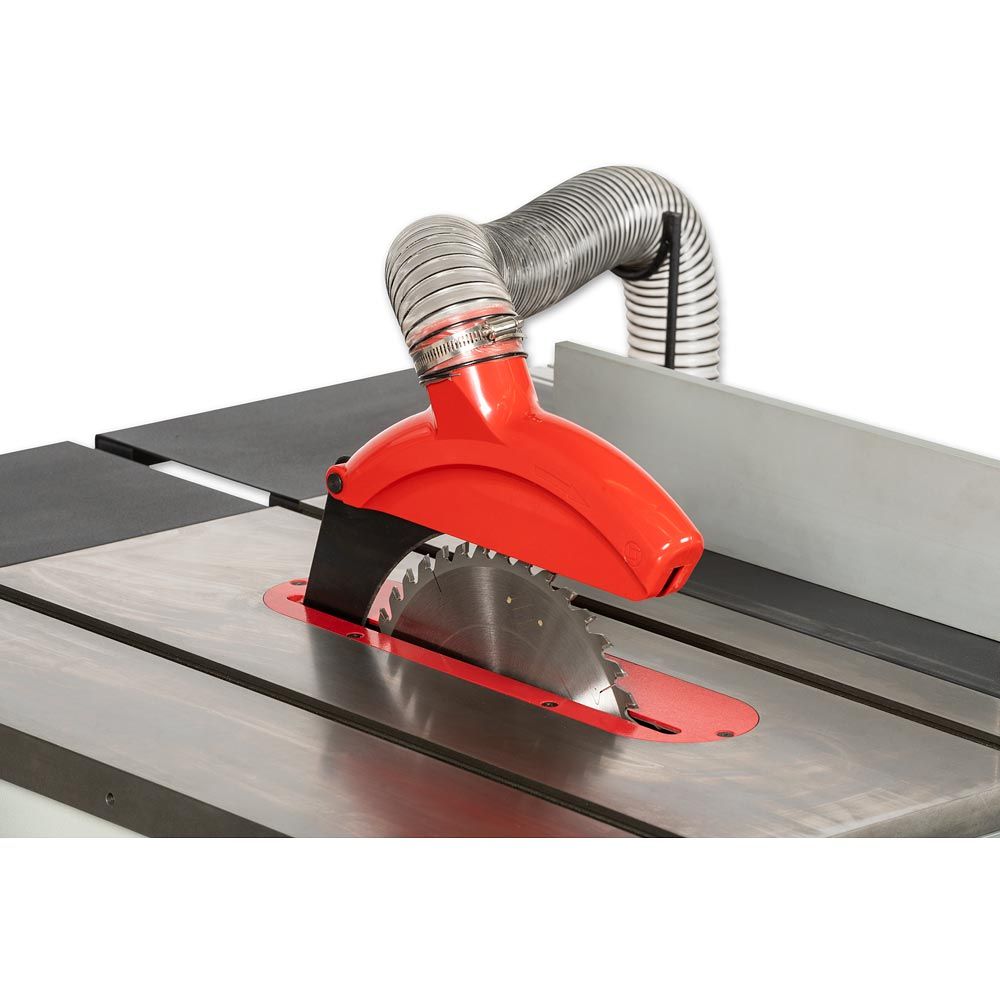

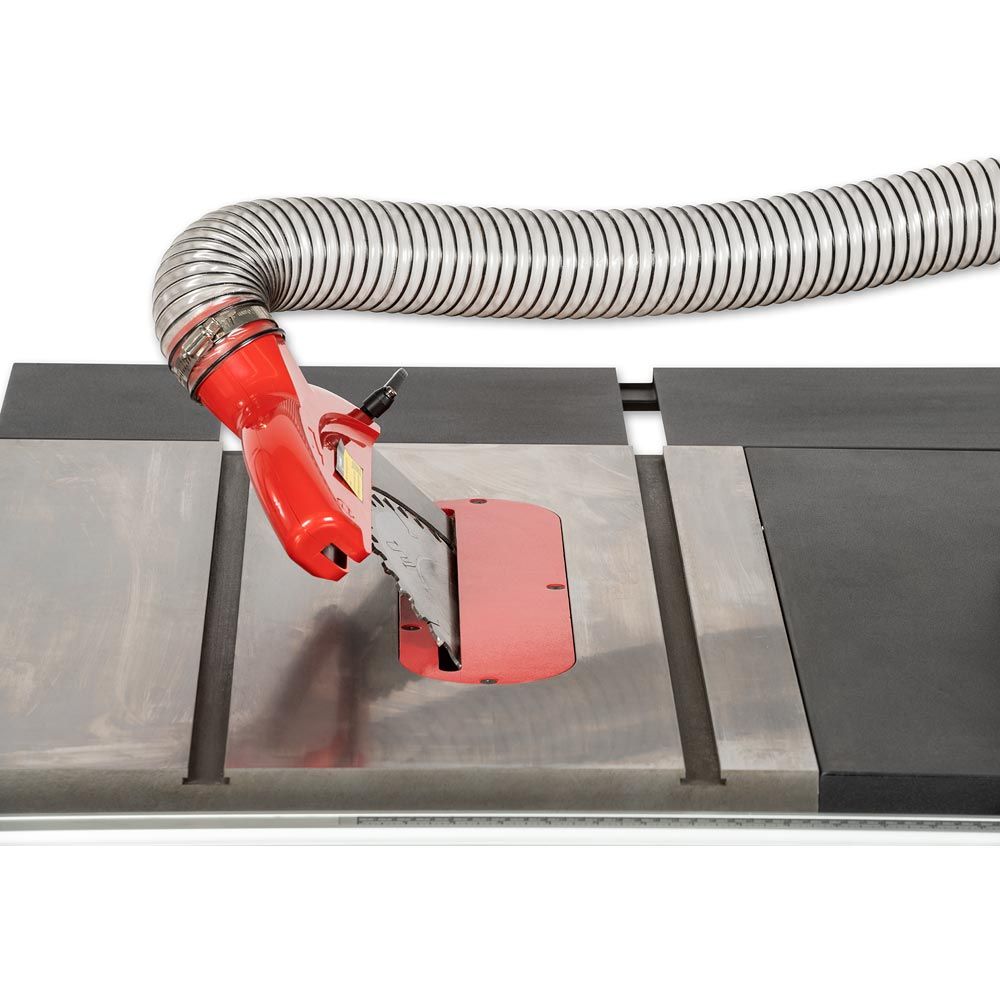

- Highly efficient dust extraction from above and below
- Stable and robust design with a ground cast iron table
- Achieve multiple cuts including straight, mitred, and bevel cuts
- Increased table width for cutting longer pieces of wood or sheet materials
- Dual dust extraction ports for clear above and below the blade
Technical Data
| Blade Diameter: | 254 mm |
| Blade RPM: | 3,000 rpm |
| Blade Tilt: | 0° to 45° |
| Bore Size: | 30 mm |
| Dust Extraction Outlet: | 100 mm & 63 mm |
| Max Depth of Cut @ 45º: | 56 mm |
| Max Depth of Cut @ 90º: | 80 mm |
| Max Width of Cut with Fence: | 430 mm with R/H Ext |
| Min Extraction Airflow Required: | 1,000 m³/hr |
| Nett Weight: | 109 kg |
| Overall L x W x H: | 1,070 mm x 1,230 mm x 1,200 mm |
| Plug Fitted UK: | 3 pin plug |
| Power: | 1.5 kW |
| Rating: | Home Workshop |
| Sound Power Level LwA [Uncertainty K]: | 94 dB(A) [3.0 dB] |
| Sound Pressure Level LpA [Uncertainty K]: | 78 dB(A) [3.0 dB] |
| T Slot Size: | 19 mm x 9.5 mm (3/4" x 3/8") |
| Table Height: | 900 mm |
| Table Size: | 485 mm x 680 mm |
| Table Size With Extensions: | 1060 mm x 900 mm |
| Voltage: | 230 V |
Includes
- 1x AW254TS Table Saw
- Extension tables (left, right and rear)
- 1x 254mm Axcaliber Premium 40 tooth blade
- Removable side panels for cleaning and maintenance
- Splayed leg design stand with powder coated steel legs and rubber feet
