Description

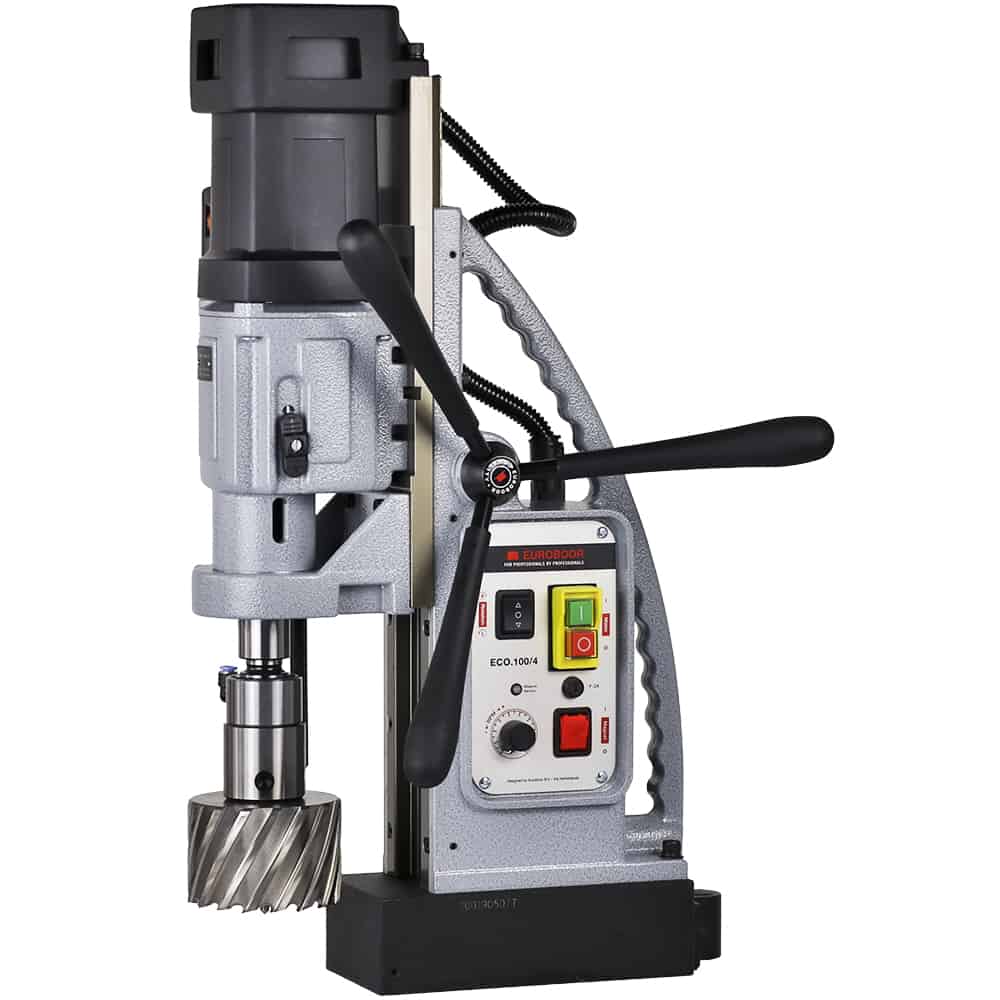

The Euroboor ECO.100/4 magnetic core drilling machine cuts holes up to ø 100 mm (4“) and is particularly suitable for tapping. This magnetic core drilling machine has an extremely powerful 1,900 W (17.3 A) motor with a four-speed gearbox. The ECO.100/4 drilling machine benefits from a right/left rotating functionality and electronic speed adjustment.
- Four-speed gearbox
- Particularly suitable for tapping
- Right/left rotating functionality
- Electronic speed adjustment
- Overheat protection
Technical Data
| Annular cutting | Ø 12 - 100 mm |
| Twist drilling |
Ø 1 - 31.75 mm
|
| Countersinking | Ø 10 - 105 mm |
| Tapping | M3 - M30 |
| Length | 365 mm |
| Width | 310 mm |
| Height | 510 - 710 mm |
| Stroke | 260 mm |
| Weight | 26.5 kg* |
|
Magnet (l x w x h)
|
220 x 110 x 64 mm
|
| Magnetic force | 3,000 kg |
| Motor power | 1,900 W |
| Total power | 2,050 W |
|
Speed (no load)
|
(I) 42 - 110 rpm
(II) 65 - 190 rpm (III) 140 - 400 rpm (IV) 220 - 620 rpm |
|
Speed (load 1,900 W)
|
(I) 85 rpm (II) 152 rpm (III) 270 rpm (IV) 480 rpm |
|
Spindle (Weldon)
|
MT3 19.05 mm |
| Voltage |
220 - 240 V / 50 - 60 Hz
|
Includes
1 x ECO.100/4 (D) Magnetic drilling machine
1 x safety guard
3 x handles
1 x hex key 2.5 mm
1 x hex key 4 mm
1 x hex key 5 mm
1 x hex key 6 mm
1 x hex key 8 mm (ECO.100/4 D only)
1 x stop pin
1 x lubrication system
1 x safety chain
1 x bottle (200 ml) of IBO.10 cutting oil
1 x arbor MT 3 - 19.05 mm (3/4"), including lubrication ring
1 x Morse taper ejector drift key
1 x user manual
1 x safety ear protection
1 x safety goggles
1 x safety gloves
