Description

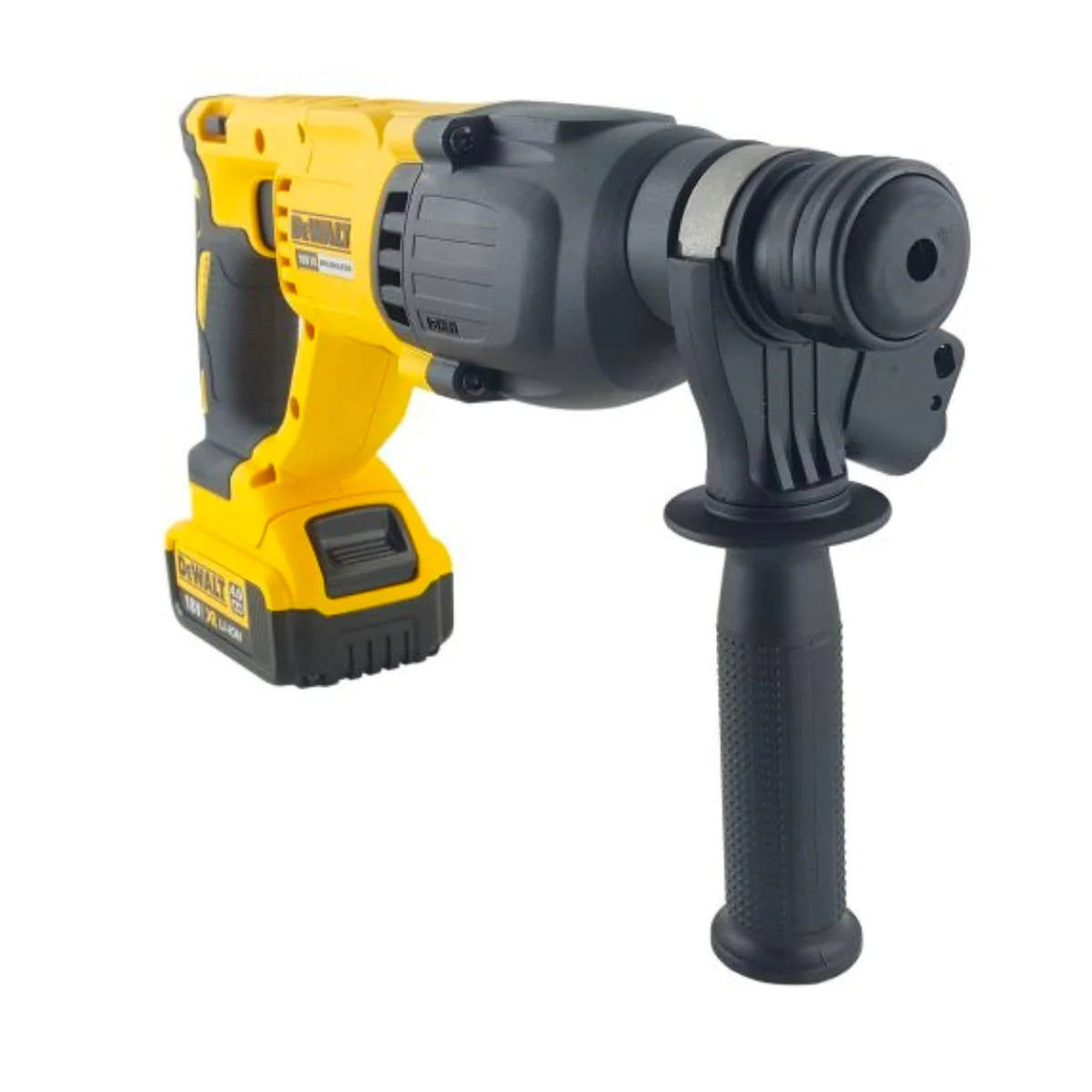

The DCH133 18V rotary hammer drill delivers 2.6 joules of impact energy. It can be used to drill holes up to a maximum of 26mm diameter in concrete. It has a brushless motor, which delivers more power and also longer runtime. We suggest this tool for all contractors, electricians, plumbers, HVAC installers, security and camera installers.
- Ideal for drilling anchor and fixing holes into concrete; brick and masonry
- Rotation stop mode for light chiseling in drywall; tiles and render
- Impact stop only allows drilling executed in wood and metal
This 18V Brushless hammer drill DCD796 delivers 70Nm torque. The new 3 position LED, ensures that you'll never have to drill in the dark. Supplied without batteries. Watch the product video below.
Includes a TSTAK carry case, all TSTAK storage boxes and containers can easily be stacked and attached for quick organization and storage in the shop, or on the job site.
- Brushless Motor Technology for excellent efficiency
- Two speed all metal transmission for increased runtime and longer tool life
- New 3 Position LED torch, High/Medium/Low settings with High output 20min LED delay lighting up your work place
- 15 position adjustable torque control for consistent screw driving into a variety of materials
- Li-Ion battery with a state of charge indicator
- Steel belt hook and magnetic bit holder
- Ultra compact, lightweight design allows use in confined spaces
Technical Data
| DCD796 | |
| GTIN | 5035048616376 |
| BRAND | DEWALT |
| RATING | Industrial |
| BATTERY TYPE | Lithium Ion |
| VOLTAGE | 18V |
| MOTOR TYPE | Brushless |
| HAMMER ACTION | With Hammer |
| CHUCK | 13mm |
| MAX TORQUE (HARD) | 70Nm |
| MAX TORQUE (SOFT) | 27Nm |
| OUTPUT POWER | 460W |
| NO LOAD SPEED (1ST) | 0-550rpm |
| NO LOAD SPEED (2ND) | 0-2000rpm |
| IMPACT RATE (1ST GEAR) | 0-9350bpm |
| IMPACT RATE (2ND GEAR) | 0-34000bpm |
| DRILLING CAPACITY [WOOD] | 40mm |
| DRILLING CAPACITY [METAL] | 13mm |
| DRILLING CAPACITY [MASONRY] | 13mm |
| CARRY CASE | TSTAK Case |
| LENGTH (CM) | 19 |
| WIDTH (CM) | 7 |
| HEIGHT (CM) | 20.3 |
| WEIGHT (KG) | 1.8 |
| DCH133 | |
| BRAND | DEWALT |
| RATING | Industrial |
| BATTERY TYPE | Lithium Ion |
| VOLTAGE | 18V |
| MOTOR TYPE | Brushless |
| HAMMER ACTION | With Hammer |
| CHUCK | SDS Plus |
| MODE SELECTOR |
3 Mode (Chipping)
|
| IMPACT ENERGY | 2.6 Joules |
| NO LOAD SPEED (1ST) | 1550rpm |
| IMPACT RATE (1ST GEAR) | 5680bpm |
| DRILLING CAPACITY [WOOD] | 30mm |
| DRILLING CAPACITY [METAL] | 13mm |
| DRILLING CAPACITY [MASONRY] | 26mm |
| CORE DRILL CAPACITY | 50mm |
| CARRY CASE | Carry Case |
| LENGTH (CM) | 38 |
| WIDTH (CM) | 16 |
| WEIGHT (KG) | 2.3 |
| LENGTH (CM) | 19 |
| WIDTH (CM) | 7 |
| HEIGHT (CM) | 20.3 |
| WEIGHT (KG) | 1.8 |
Includes
1 x Rotary Drill DCH 133
1 x Hammer Drill DCD 796
1 x Charger
2 x 5AH Li-Ion Battery packs
2 x TSTAK Carry cases
