Description
The Bosch Professional 360° Line Laser Level GLL 3-80 0601063S00 for 3 x 360° for visibility on a new level.
- High visual clarity is provided by high-powered diodes
- 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
- Intuitive user interface offers easy operation
Technical Data
| Working range with receiver, value | 120 m |
| Accuracy |
± 0.3 mm/m*/** (*for the four horizontal intersection points; **plus use-dependent deviation)
|
| Projection | 3 x 360° line |
| Laser diode |
Line: 630 - 650 nm, < 10mW
|
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | up to 30 m |
| Working range with receiver | up to 120 m |
| Working range without receiver | up to 30 m |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply |
4 x 1.5 V LR6 (AA)
|
| Operating time (max.) |
4 h in 3-line mode
|
| Tripod thread | 1/4", 5/8" |
| Weight, approx. | 0.82 kg |
| Colour of laser line | red |
| Compatible laser receivers | LR 6 + 7 |
| Working range, value | 30 m |

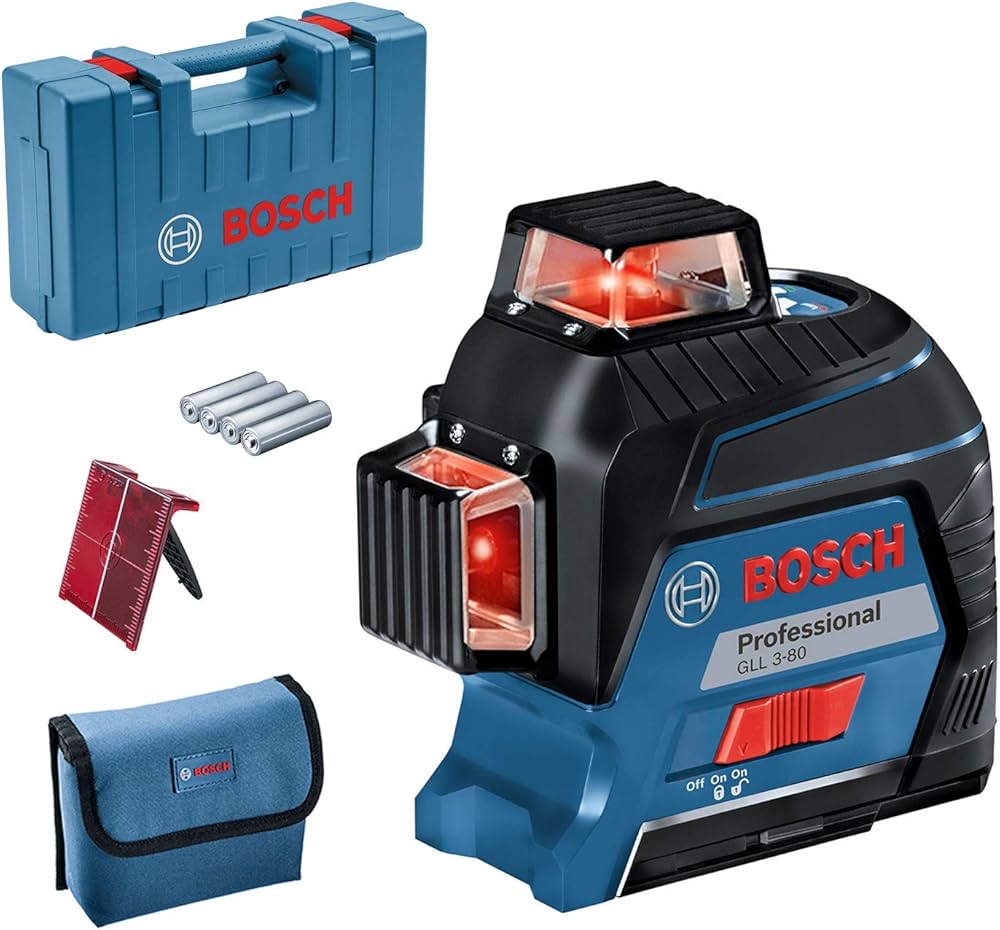

Includes
4 x 1.5 V LR6 battery (AA)
Laser target plate
Pouch
Carrying case
